FENDER | DUO-SONIC | TECHNICAL INFORMATION | 1969 PARTS LIST

Fender Duo-Sonic replacement parts list, 1969

List of constituent parts with part numbers and description

This 1969 Fender Duo-Sonic parts list is just that: a typed list of parts, with part numbers. The previous year, Fender produced a much more extensive Duo-Sonic service manual, with parts list, but also diagrams of the parts and their assembly, and a simplified circuit schematic. The Duo-Sonic was all but defunct by the time this sheet was printed. It is dated 1st June 1969; the final price list inclusion of the model was in May 1969.

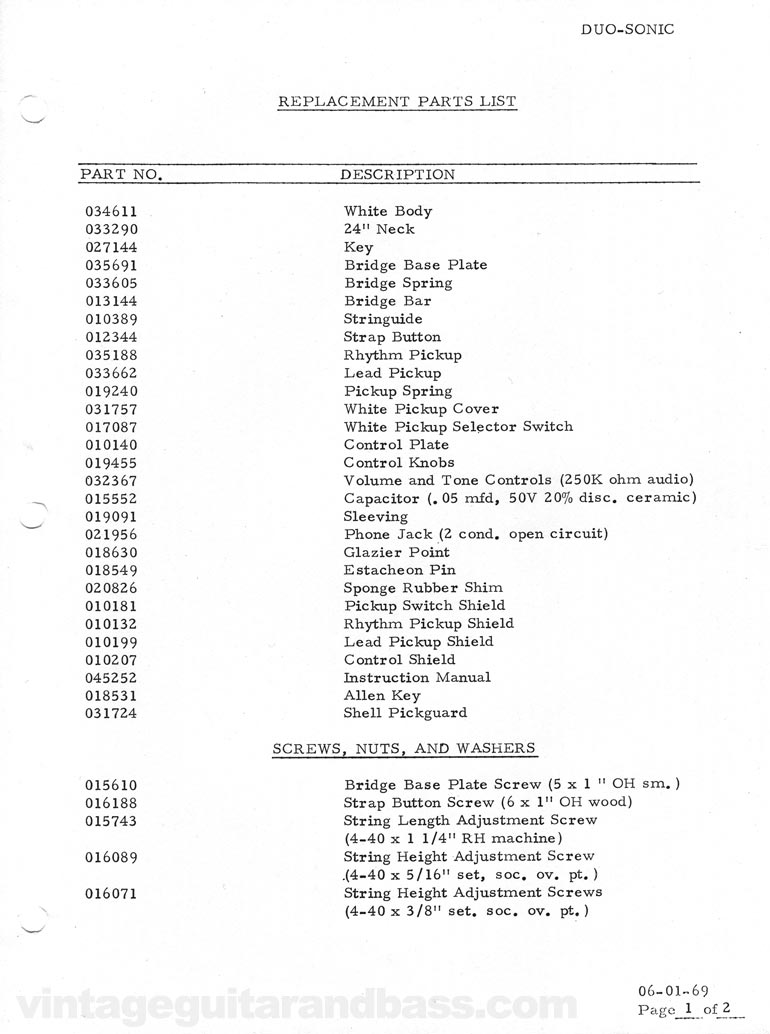

Replacement part list for the Fender Duo-Sonic electric guitar - 1969, page 1

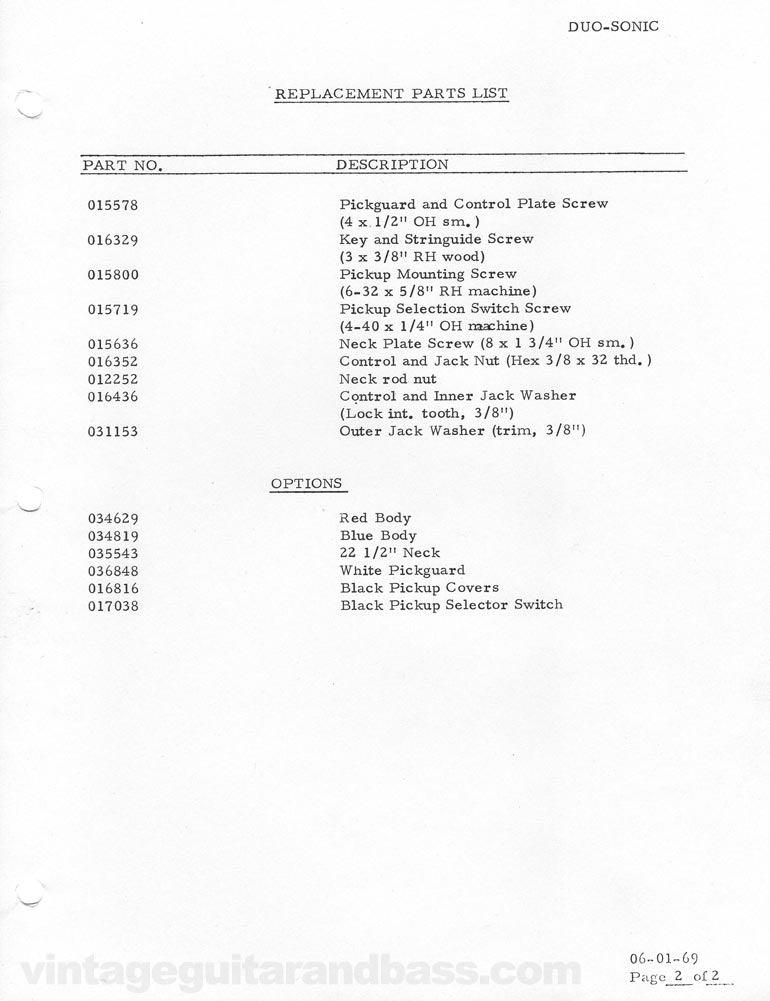

Replacement part list for the Fender Duo-Sonic electric guitar - 1969, page 2
