Gibson PU380 'Melody Maker' pickup

Single coil with plastic cover, for a "bright/low" tonality

Some guitars fitted with this pickup

1964 Gibson Melody Maker1966 Kalamazoo KG11966 Kalamazoo KG2A
1966 Epiphone Granada1969 Gibson Melody Maker
Fitted to a wide range of entry level guitars in the CMI family, all produced in Kalamazoo, Michigan - most notably the Gibson Melody Maker and ES120T electric acoustic; and their Epiphone equivalents of course, the Olympic, Olympic Special and Granada. In 1966, the Kalamazoo brand was revived with the introduction of the KG series; naturally sporting the PU380. Almost 100000 guitars were produced with these pickups between 1959 and 1970.

The pickup itself is a traditional single coil; wound on a plastic former with Alnico magnet at the center. It has a typical DC resistance of around 7kΩ The black or white pickup cover mounts directly to the scratchplate; the bolts thread directly into the black bassplate (so no nut), with just a rubber washer providing spacing.

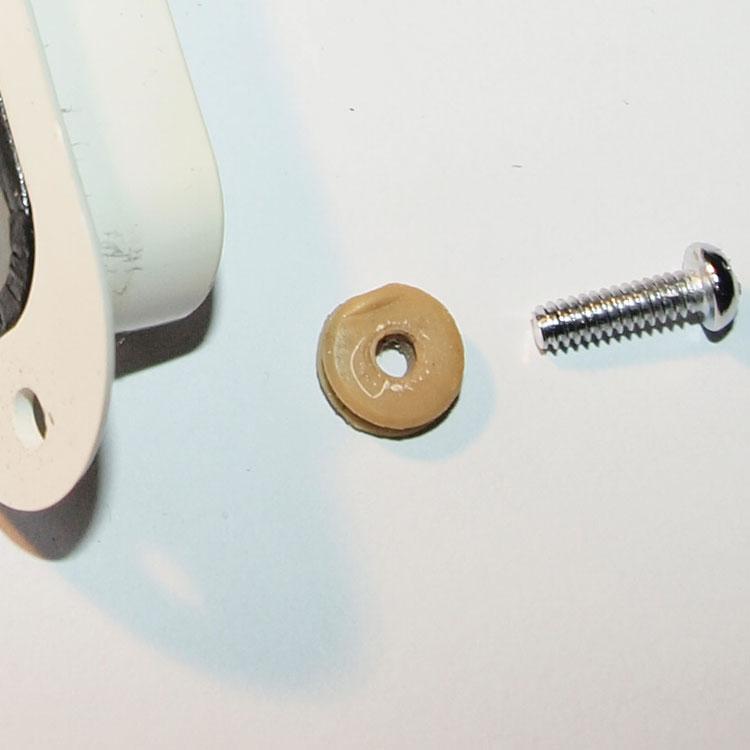

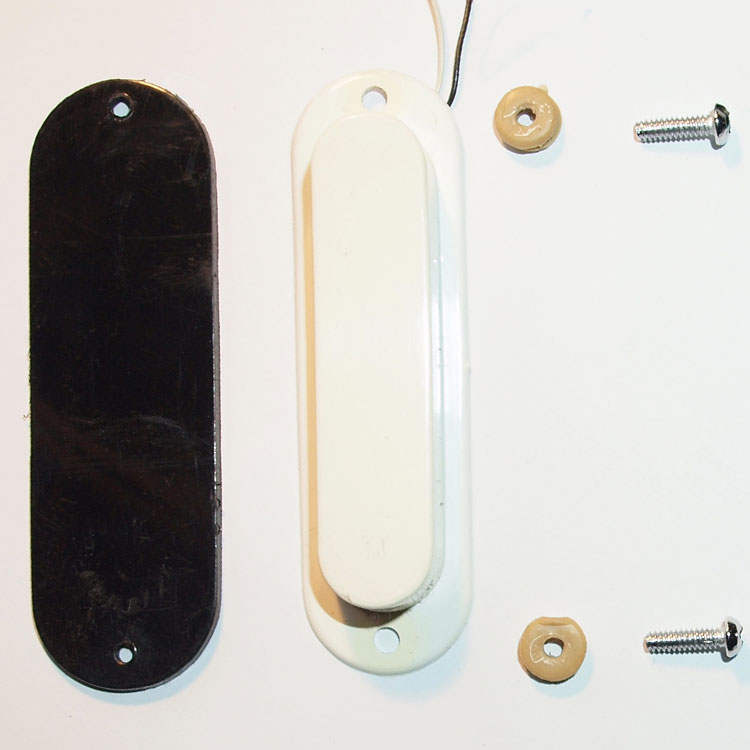

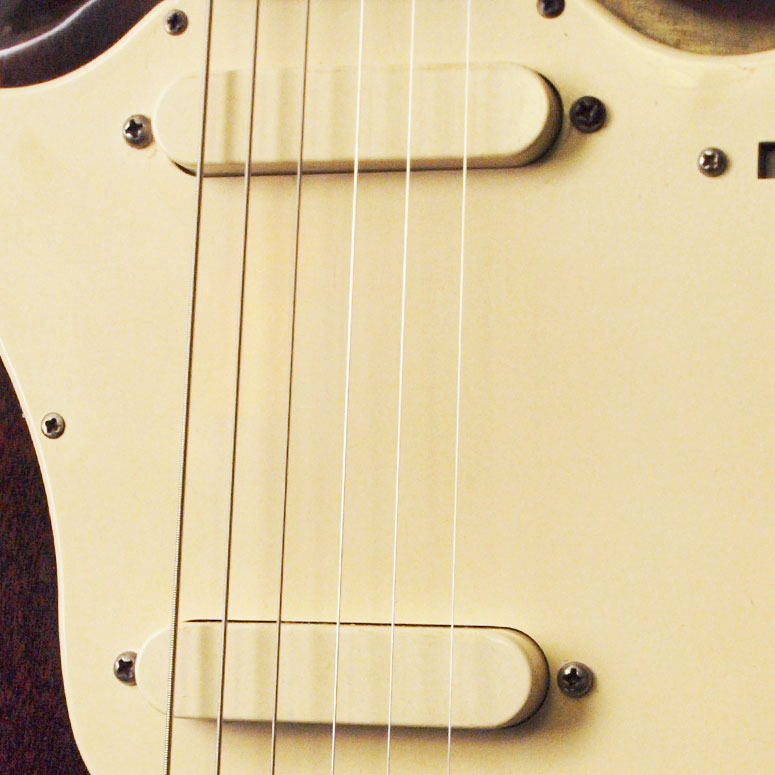

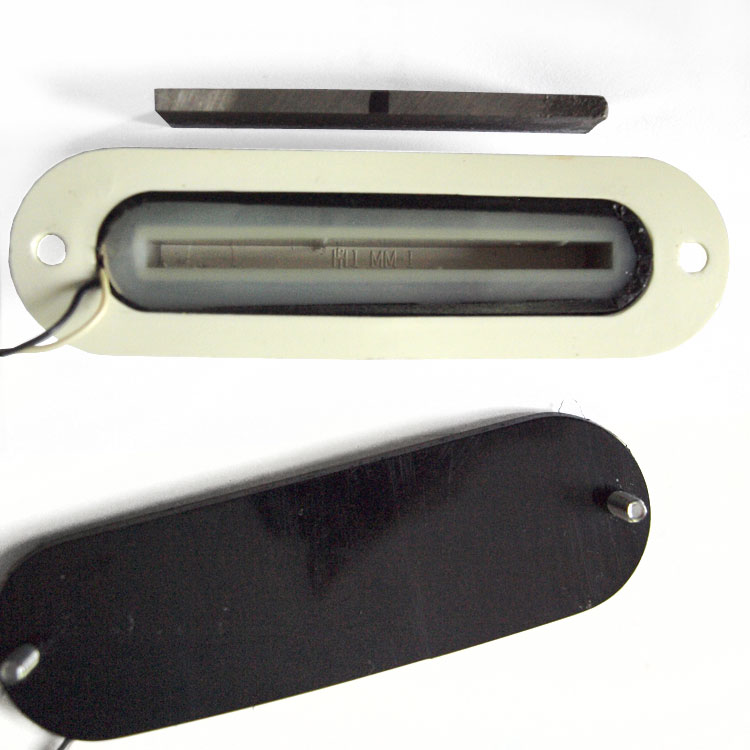

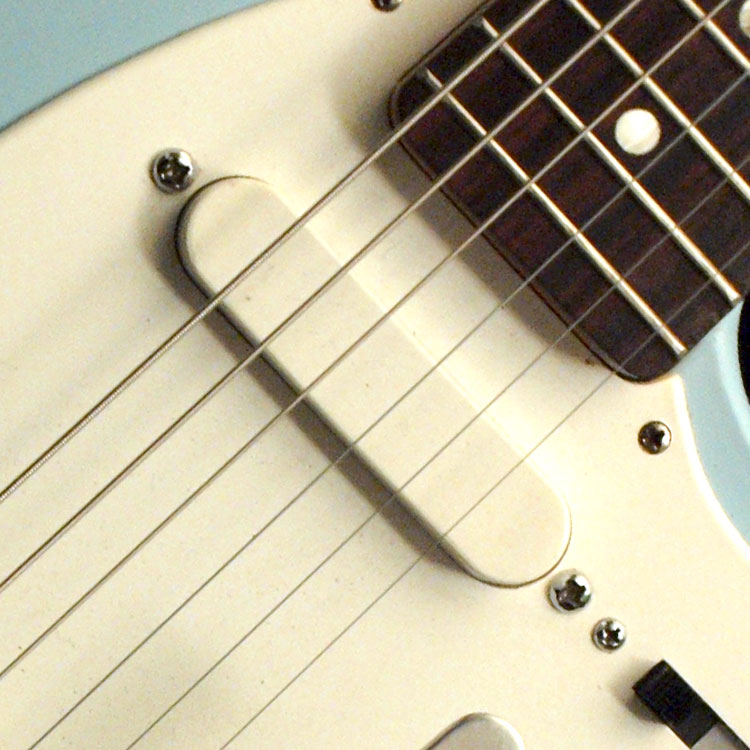

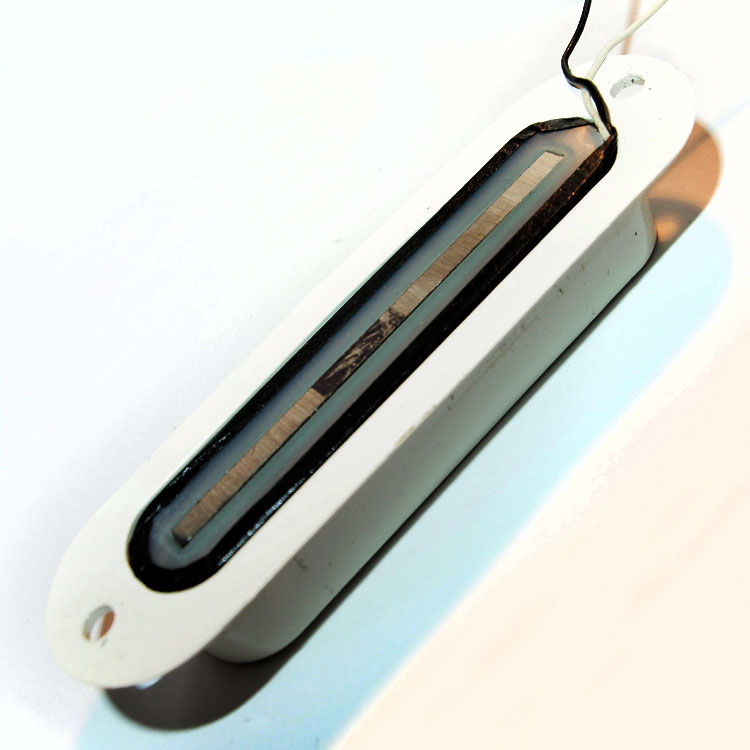

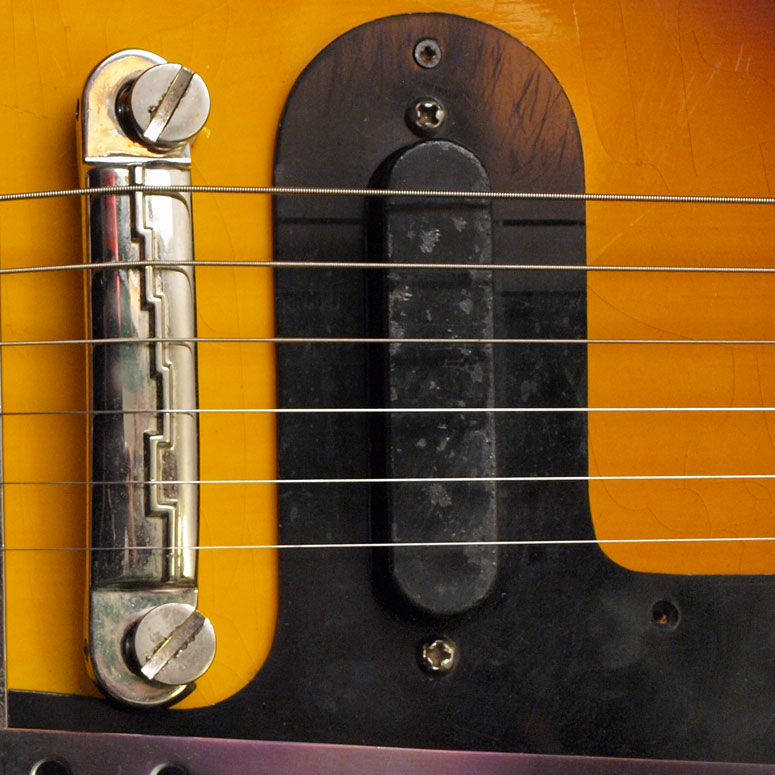

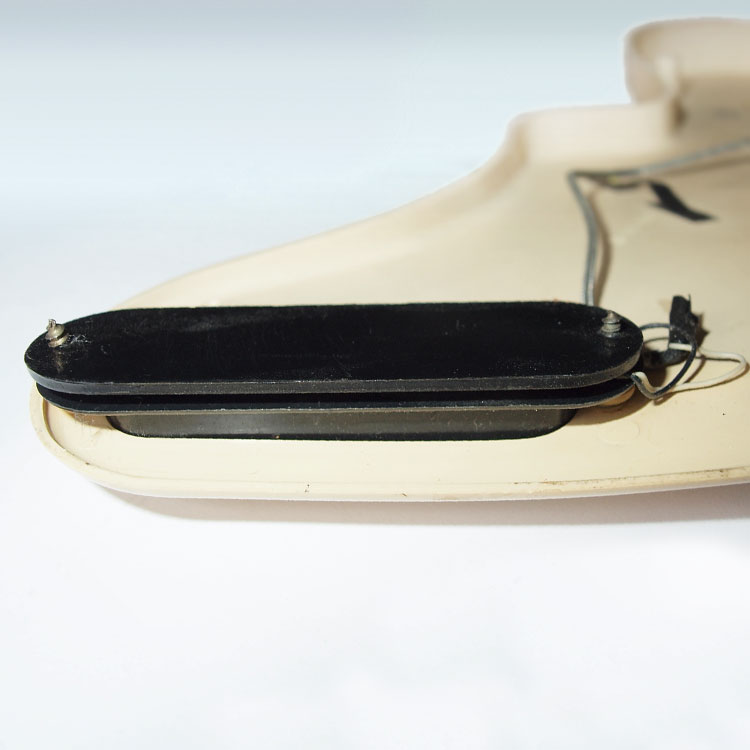

The pictures below are of the PU380 fitted to a 1966 Kalamazoo KG2a, 1964 and 1969 Gibson Melody Maker, and a 1966 Epiphone Granada. The underside clearly shows the magnet, around which the coil is wrapped, and some of the turns through the potting. Note the mounting bolt and rubber spacing washer in the final image; the unit was not spring-mounted, and had very limited height adjustability.
