Gibson potentiometer: CBA-811-1053

Volume / tone pot as used in vintage Gibson guitars

Gibson Pot Database: home

Part number:CBA-811-1053
Resistance: 500 K
Taper:audio
Shaft length:3/4"
Notes:

Models using this potentiometer

J-160E electric acoustic
pot list | instrument details
EB-0 bass
pot list | instrument details
EB-2 bass
pot list | instrument details
EB-3 bass
pot list | instrument details
EB-6 bass
pot list
EB-OF bass
pot list
Thunderbird II bass
pot list | instrument details
Thunderbird IV bass
pot list | instrument details
Barney Kessel
pot list | instrument details
Barney Kessel Custom
pot list | instrument details
Byrdland
pot list | instrument details
ES-125C
pot list | instrument details
ES-125CD
pot list | instrument details
ES-125T 3/4
pot list
ES-125TD
pot list | instrument details
ES-140T
pot list
ES-175
pot list
ES-175D
pot list | instrument details
ES-225T
pot list
ES-225TD
pot list
ES-330T
pot list | instrument details
ES-330TD
pot list | instrument details
ES-335TD
pot list | instrument details
ES-345TD
pot list | instrument details
ES-350TD
pot list | instrument details
ES-355TD
pot list | instrument details
ES-355TD-SV
pot list | instrument details
ES-5 switchmaster
pot list | instrument details
Firebird I
pot list | instrument details
Firebird III
pot list | instrument details
Firebird V
pot list | instrument details
Firebird VII
pot list | instrument details
L-5 CES
pot list | instrument details
Melody Maker
pot list | instrument details
Melody Maker 3/4
pot list | instrument details
Melody Maker Double
pot list | instrument details
SG custom
pot list | instrument details
SG Jr
pot list | instrument details
SG special
pot list | instrument details
SG standard
pot list | instrument details
SG TV
pot list | instrument details
Super 400 CES
pot list | instrument details
Tal Farlow
pot list | instrument details
Trini Lopez Deluxe
pot list | instrument details
Trini Lopez Standard
pot list | instrument details

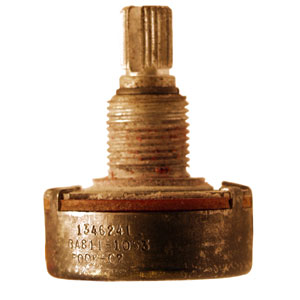

This early pot (dated week 41 of 1962) is made by Centralab. Unlike the newer pots made by CTS, part number and date codes are stamped on the side, rather than underside of the pot casing

This early pot (dated week 41 of 1962) is made by Centralab. Unlike the newer pots made by CTS, part number and date codes are stamped on the side, rather than underside of the pot casing

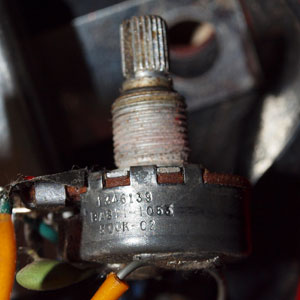

This pot, also by Centralab is dated the 39th week of 1961

This pot, also by Centralab is dated the 39th week of 1961
