Hagstrom Coronado IV

medium-scale solid body electric bass guitar

1964 Hagstrom Coronado bass

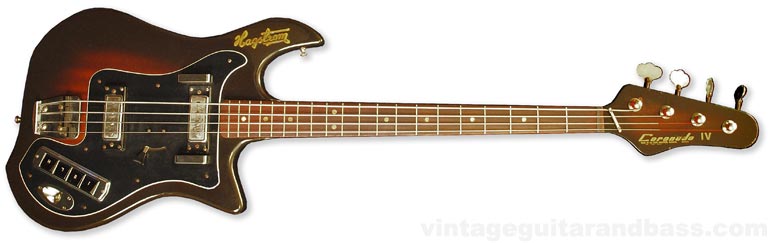

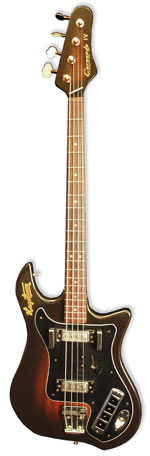

1966 Hagstrom Coronado IV bass
Two examples of the Hagstrom Coronado bass, a 1964 (top) and a 1966.
Model: Hagstrom Coronado
Available: 1963-1970
Pickups: Two Hagstrom Bi-Sonic single-coil pickups
Scale: Medium, 32 1/4"
Body: Solid mahogany body. 20 1/2" long, 14" wide, 1 3/8" thick. Total body length 46 1/2"
Neck: Mahogany bolt-on neck. Rosewood fingerboard. Adjustable truss rod. 20 frets. Width at nut 1 1/2"
Hardware: 4 'touch tab' on/off switches, master volume slider. Open gear individual tuners. Hagstrom adjustable bass bridge.
Finishes: Mahogany Sunburst, Red Sunburst.

The Hagstrom Coronado bass is one of those odd-looking guitars that people immediately love or hate. Certainly the silhouette is unconventional. And the controls a little peculiar. But these are great playing basses and rightly have their fans. And as a functional instrument they are pretty unique, what with a medium scale, all-mahogany bolt-on construction, and slider volume control. The Coronado was only produced in moderate numbers; 1157 basses in total, in seven batches between 1963 and 1970. A combination of rarity and desirability as a player means the Hagstrom Coronado bass is one of the brands most collectable vintage guitars. They were also distributed in the UK, and beyond by Selmer as the Futurama Coronado bass.

1966 Hagstrom catalogue
From the 1966 Hagstrom catalogue Fabulous Bi-Sonic pickups... award-winning showmanship styling... perfect bass sound response makes the Coronado IV the finest electric bass available. With the incomparable Bi-Sonic pickups, bass and treble frequencies are separated so that simultaneous bass and treble creates a new dimension in sound

America had no shortage of quality guitar manufacturers, but Hagstrom still managed to export guitars there, to be distributed firstly by Merson, then Unicord (after it merged with Merson) and finally Ampeg. The Coronado was a good middle ground between a typical Fender and Gibson bass guitar. It had a mahogany body with translucent burst finish, and mahogany and neck, with rosewood fretboard - just like a Gibson; but with a bolt-on construction and single-coil pickups like a Fender. Most commercially available electric bass guitars at this time had a scale of 34" (long) or 30" (short). Fender and Gibson each produced basses with both scales, but 34" is generally associated with Fender, and 30" with Gibson. Again, the Hagstrom Coronado blurred the boundaries, having a scale of 32", half way between the two. This must have been one of, if not the earliest medium scale bass.

Coronados were available as a four string bass and a six string bass, though the six string did not sell well, and was discontinued in 1966. Initially the model was simply designated Coronado, then Coronado I and II for four and six string versions respectively, finally settling on the more informative Coronado IV and Coronado VI.

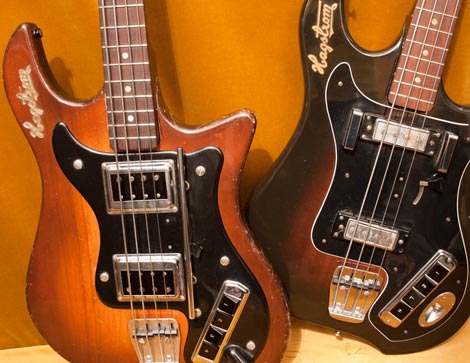

Two Hagstrom Coronado bass guitars: left, a 1964 Coronado I with Bi-Sonic pickups; right a 1966 Coronado IV with small single coils

Two Hagstrom Coronado bass guitars: left, a 1964 Coronado, from the first batch produced, fitted with Bi-Sonic pickups; right a 1966 Coronado IV with small single coil pickups

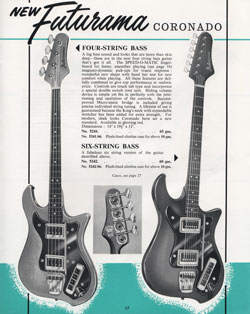

The Futurama Coronado IV and Coronado VI in the 1964 Selmer catalogue
The Futurama Coronado IV and Coronado VI in the 1964 Selmer catalogue

The basic Coronado design remained the same across the course of production, but there were subtle changes across the batches produced. Most notably, the Bi-Sonic pickups were replaced with a smaller unit; still single coil but much more traditional in design. Hagstrom, however continued to call them 'Bi-Sonic' in their catalogues. but also: switches: Initially numbered 1-4, later 1-2, L, H; output jack: Initially enclosed by the scratchplate, later, a separate screw-in metal version (from batch 658). scratchplate: initially single-ply black plastic held in place with larger slot head bolts; later (1966) three-ply with typical screw mounting. finger rest: This changed from a long bar below the pickups to a tall metal post above and below the neck pickup. truss rod cover: the aluminium 'Kings Neck' truss rod cover only appeared up until 1965, with later headstocks having a string bar and no access to the truss cavity from the headstock end.

The table below compares the Hagstrom Coronado with a number of other basses, and 1966 US prices.

Hagstrom Coronado vs other contemporary basses

A comparison of several Hagstrom and other basses available in the USA in 1966. The Coronado IV is more expensive than a Fender Jazz bass, Fender Precision and even a Gibson Thunderbird (though these had just been reduced in price due to poor sales) - no doubt in part due to shipping and import duties.

ModelPickupsScale1966 Price
Gibson EB3230"$337.50
Hagstrom Coronado IV232"$299.50
Fender Jazz234"$271
Hagstrom Concord I/II232"$260/$435
Guild Jetstar130"$245
Gibson EB0130"$240
Gibson Thunderbird1/234"$239.50/$289.50
Fender Precision134"$223
Hagstrom F-400232"$195
Hagstrom F B232"$165

Hagstrom Coronado batch numbers

A total of 1157 Hagstrom Coronado bass guitars were shipped, in seven separate batches. The batch number is the first three digits of the guitar's serial number.

550 Coronado - the first batch of 149 Coronados produced between 1963 and 1964, branded Hagstrom and Futurama. Both IV and VI string basses. Bi-Sonic pickups. See an example from this batch here.

566 Coronado I - 194 four-string Coronados from 1963. Bi-Sonic pickups.

567 Coronado II - 97 six-string Coronados from 1963. Bi-Sonic pickups.

589 Coronado I - a batch of 200 Coronado Is from 1964-65. Bi-Sonic pickups.

597 Coronado IV / VI - A batch of 100 Coronados from 1965-66; 50 IVs and 50 VIs. These are the last six string Coronados produced. Bi-Sonic pickups.

658 Coronado IV - 1965-66. The largest batch; 274 Coronado IV from 1966-67. Non-Bi-Sonic single coils. Have a closer look at a bass from batch 658

717 Coronado IV - The last batch was of just 143 basses, built over three years, 1967-1970. Non-Bi-Sonic single coils.

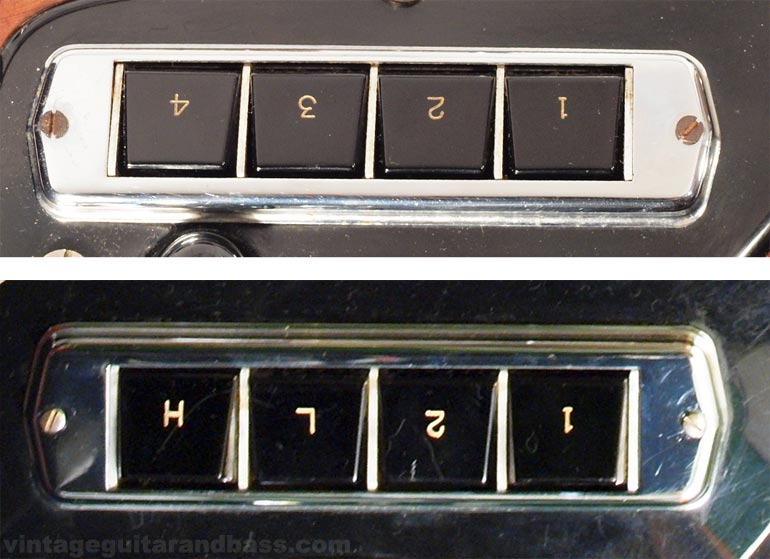

Hagstrom Coronado controls

Hagstrom Coronado controls
Besides the volume slider lever, the Coronado bass has four push-button switches, mounted on a consul just above the output jack. In early batches, these were numbered 1-4, though this changed to 1-2, L, and H (low and high). Buttons 1 and 2 were for the neck and bridge pickups individually, or both pickups when depressed simultaneously. Buttons 3 and 4 replicated the effect of a tone control, with 3 (L) giving a bassier and 4 (H) a more trebley response.

Hagstrom Coronado electronics

Hagstrom Coronado bass bridge
Hagstrom Coronado bass bridge

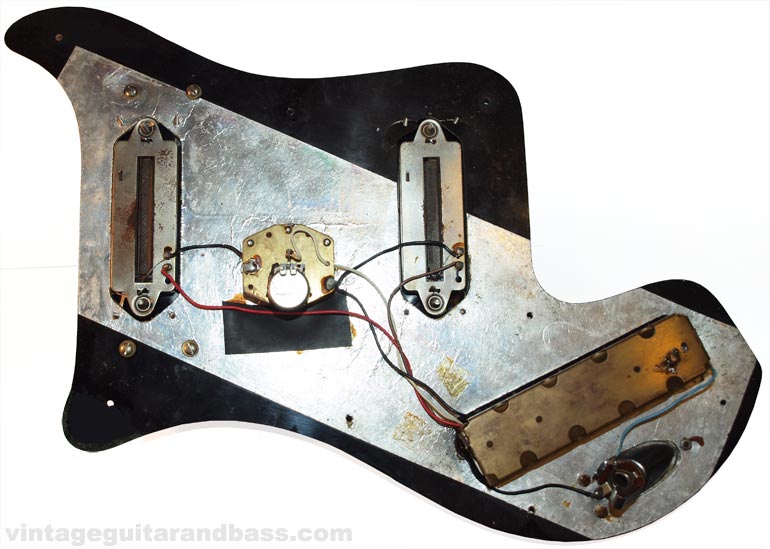

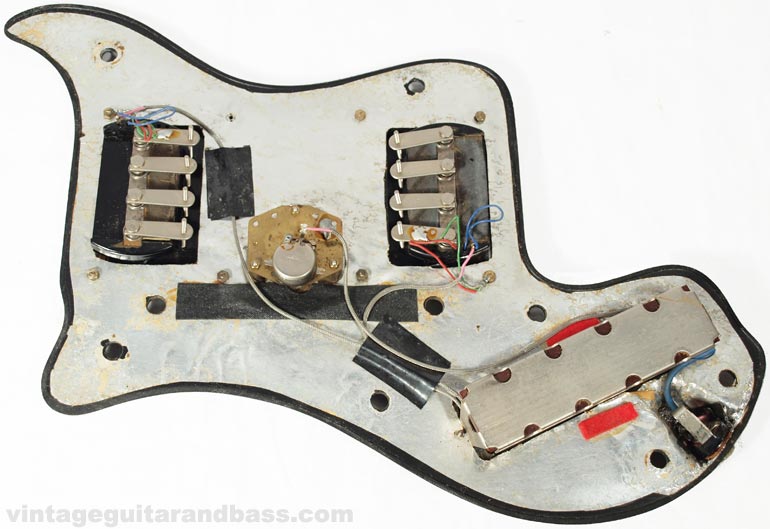

The circuitry beneath the scratchplate is largely concealed within the control consul, though the circuitry of the pickups, Lesa-brand volume control and output jack is visible. Two scratchplates are shown, from a 1964 Coronado (top), and a 1966 Coronado IV (below).
Got an opinion on the contents of this page? Disagree with something written above? Please comment

Gibson leather/suede strap

Gibson leather/suede strap

The perfect strap for your vintage Gibson guitar. 2019 Gibson quality

Hagstrom guitars for sale

Used Hagstrom Vintage 1960's 4 String Electric Bass [48FL]



UP FOR AUCTION / SALE:ONLY INCLUDES WHAT IS SEEN IN PICTURESPLEASE BE AWARE THAT WE REQUIRE A SIGNATURE UPON ARRIVAL OF YOUR PURCHASE 1 Used Hagstrom Vintage 1960's 4 String Electric Bass SOME WAER / PEELING / DINGS MARKSAND KNOB MISSINGTESTED WORKS WELLPLEASE REFER TO ALL PHOTOS ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ... more

Hagstrom 1970's H ‡U BN



DescriptionWe sell a lot of Bass. Here is the category of Cameras & Accessories Color: Red, Condition: B : Normal no problems in applications that use year of production: 1970 Strings: 4-string pickup: Passive Pickup configuration: 2 humbucker type body material: Mahogany Finger plate: Rosewood neck joint: detachable (bolt) accessories: soft caseShipping DestinationAreaCostestimated delivery timeTracking & InsuranceExpedited (EMS)World widePlease refer to the shipping and payments 3-10 DaysYes!... more

70's HAGSTROM BT 80 AMP & CAB - made in SWEDEN



70's HAGSTROM BT 80 AMP & CAB: amp powers up, but there is only a low signal coming out of the MIC channel amp has at least 2 broken pots - NEEDS TO BE SERVICED - BROKEN ! * cab has a 15" LANSING speaker * SOLD AS A PROJECT - NEEDS REPAIR ! PLENTY of PARTS for SALE ATTENTION! OVER 1000 more GUITARS-BASSES-AMPS-PARTS in our OTHER AUCTIONS !!! CHECK OUR SHOP OUT -------------->>>>>-------------->>>>>... more




1971 HAGSTROM BASS - made in SWEDEN: PROJECT: body "refinished " , has some cracks maple neck with rosewood fingerboard, skinny dimensions, frets removed, back has a lot of wear pickups are working fine electronics are disconnected SOLD AS IS - NO RETURNS... more

Hagstrom 1970's H BN



Description For items listed to go on sale in the shop, it may have already been sold. Before you buy the item, Please contact us! Thank you for your support Payment We accept PayPal only Shipping About shipping We will ship by EMS or Fedex. (with tracking number, perfect insurance) Shipping Duration 3 ~ 14 daysTerms of Sale If you have unpaid items reported, we would not be able to accept your bid International Buyers - Please Note: Import duties, taxes and charges are not included in the... more

70's HAGSTROM BT 80 AMP & CAB - made in SWEDEN



70's HAGSTROM BT 80 AMP & CAB: amp powers up, but there is only a low signal coming out of the MIC channel amp has at least 2 broken pots - NEEDS TO BE SERVICED - BROKEN ! * cab has a 15" LANSING speaker * SOLD AS A PROJECT - NEEDS REPAIR !... more
There are 3 comments on this article so far. Add your comment

Comment on this article

Email address
Anti-spam question - to catch web robots
How many legs does a cat have?
Russell Pompeo Comment left 25th September 2018 22:10:30 reply
How does one remove the pick guard on a Coronado bass 4? It has 2 Bi Sonics and the long chrome bar. It's bar that['s got me stumped. Any info would be greatly appreciated. Thanks
vintage guitar and bass Comment left 21st December 2018 23:11:15 reply
It just pulls out - you have to ease it gently, but it is not attached with any screws or equivalent.
richard gunter Comment left 31st July 2014 22:10:28 reply
I owned and played a Futurama, badged Hagstrom Coronado bass 1964. I couldn't afford aPrecision or any of the Gibson basses. The Futurama came up trumps it was a great player with a fantastic neck and action, and was really well put together. Mine was a red sunburst with a long chrome finger rest below the pick ups. I played it through a Selmer bass amp, powering a Selmer Goliath bass cabinet, linked to a vox t50 bass cabinet. Awesome sound for the times, wish I still had all that gear now especially the Futurama/Hagstrom bass. Happy days!!!!
