VOX | PARTS | BASS PICKUPS | EKO SINGLE COIL 09-1526-0

Vox single coil bass pickup, scratchplate mounted

Mid sixties Eko (Italian) pickup, part 09-1526-0

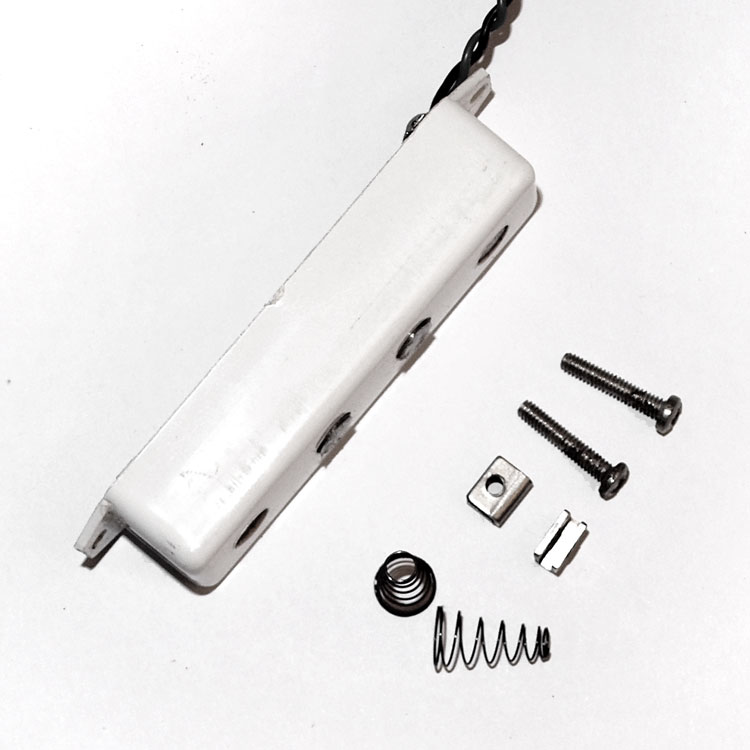

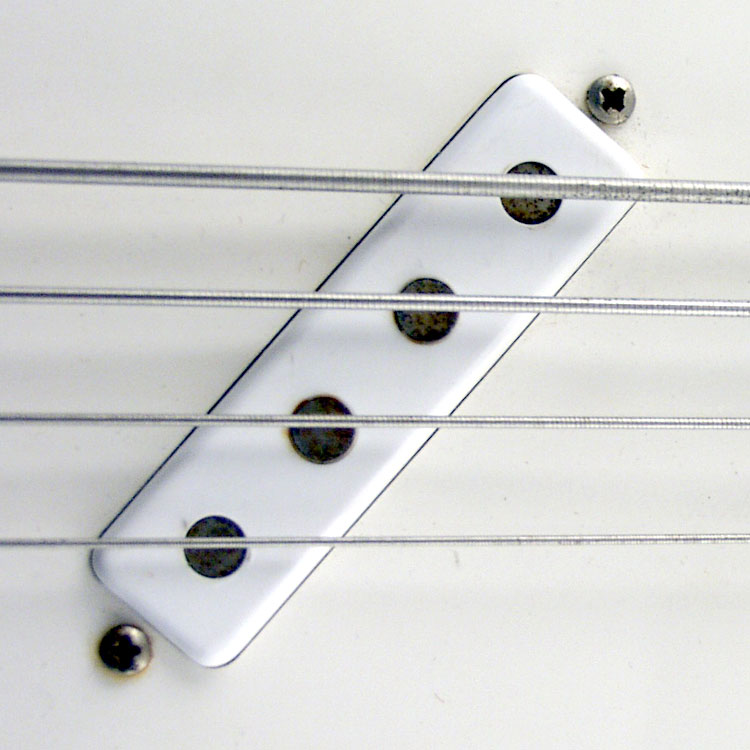

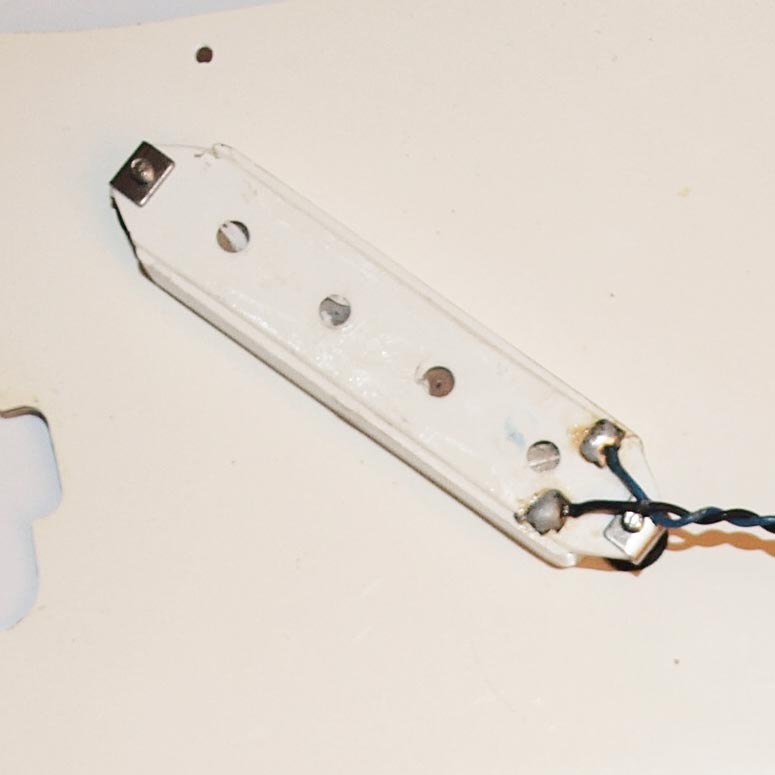

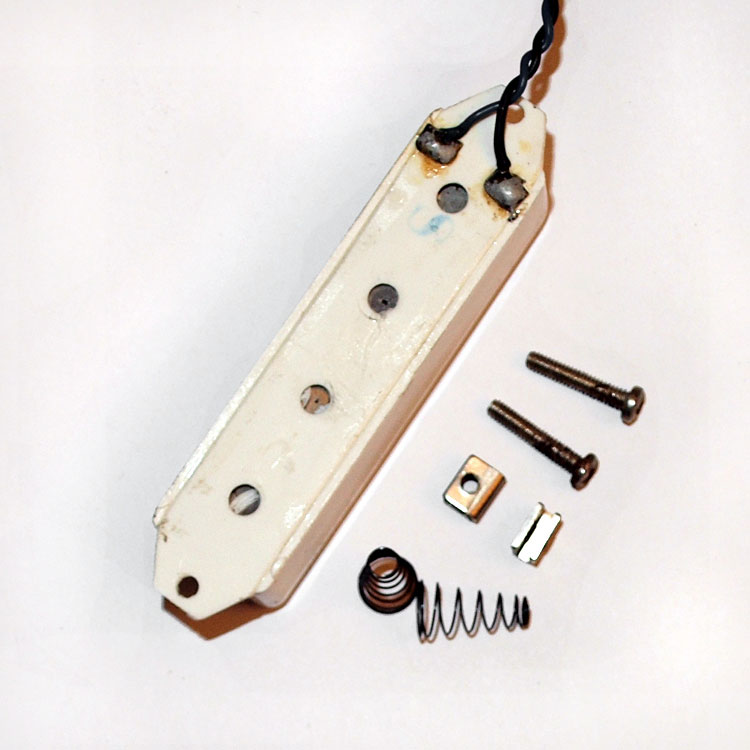

This Vox bass pickup is positioned at an angle on Eko-produced ( Italian-made) Vox basses, the Vox Panther, Phantom IV and Mark IV bass guitars. On the Panther, it was positioned at an angle: slanted forwards in this case, but also backwards in some instruments. It is scratchplate-mounted, and height adjustable, but with no surround. Two metal clips slide onto each pickup mounting tab, and it is these that are threaded to take the mounting screws. This Vox bass pickup is a sealed unit; easy examination of the coils is not possible. The leads are soldered to tabs on the underside of the plastic pickup casing

List of Vox bass pickups
