VOX | PARTS | TAILPIECE | 'HUMP'

Vox JMI 'hump' tailpiece

Vox (JMI) guitar tailpiece

Some guitars fitted with this tailpiece

1961 Vox Stroller 1963 Vox Stroller 1963 Vox Shadow 1963 Vox Clubman

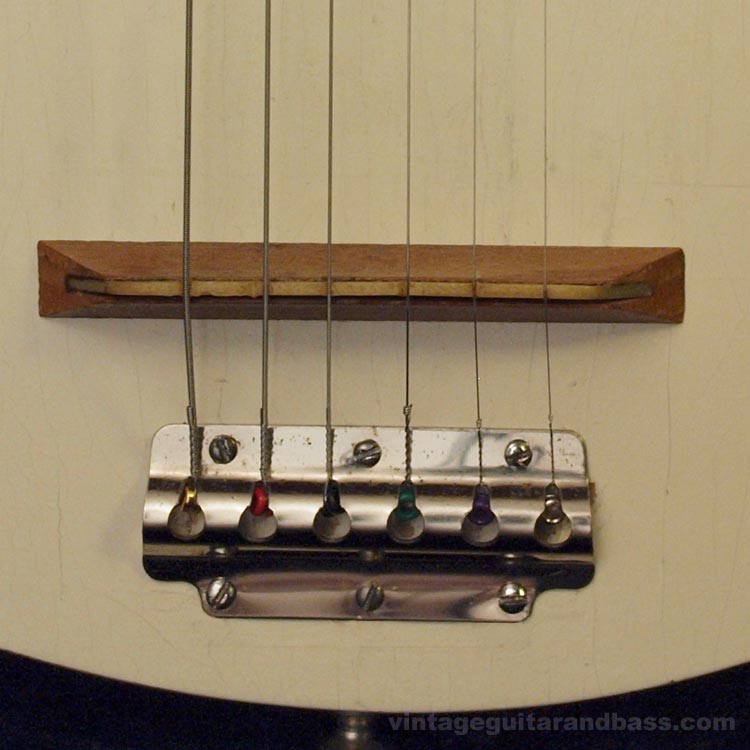

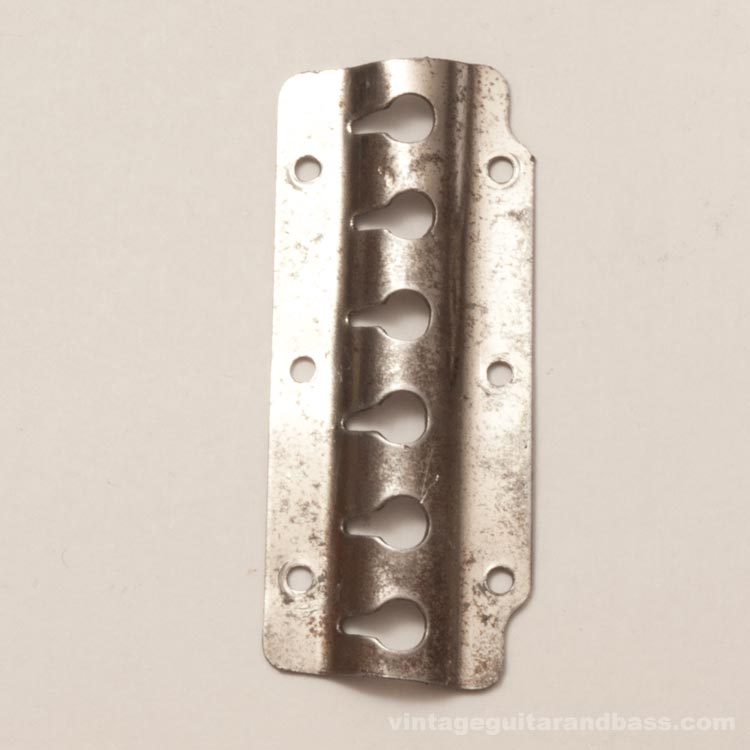

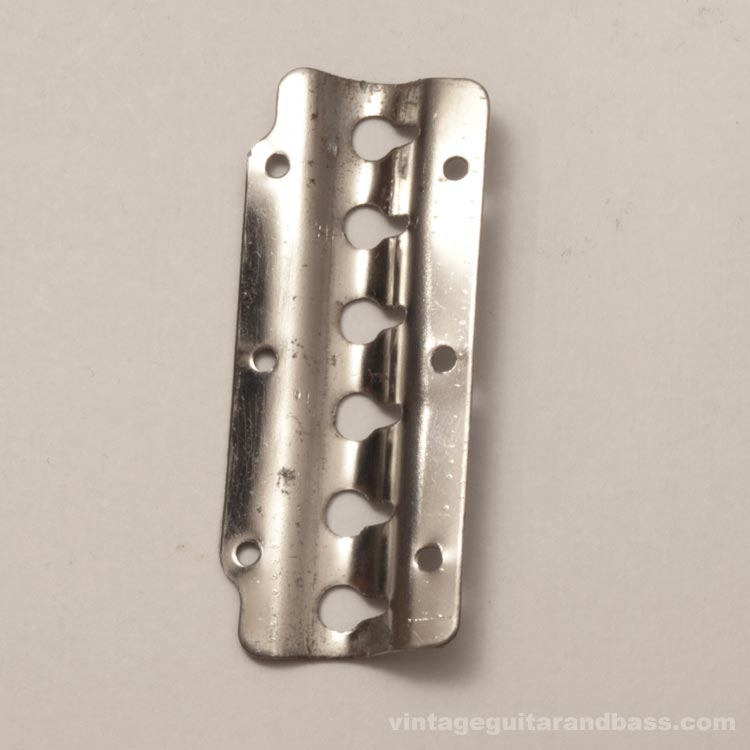

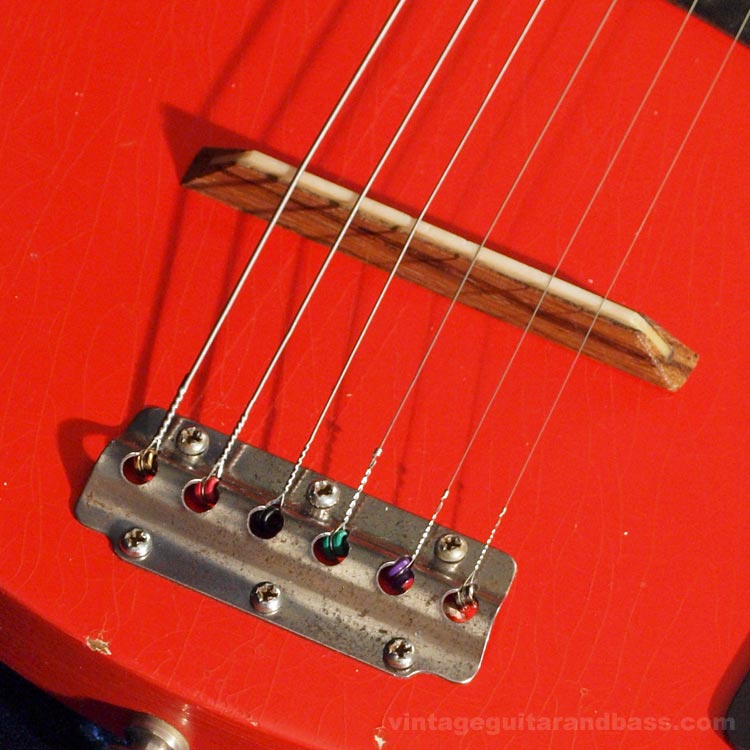

This exceptionally clever tailpiece design was super lightweight, easy to make, and therefore very cheap to produce. It was based on the tailpiece fitted to non-tremolo examples of the earliest Vox SB guitars, manufactured by Guyatone in Japan. It was fitted to the initial version of the Shadow and Stroller (non-tremolo, Guyatone LG-50 style guitars), but also the Clubman. Towards the end of manufacture, circa 1966-67, this part was replaced by a newer 'wedge' tailpiece. Both versions were used in conjunction with a floating wooden bridge.

List of Vox guitar tremolos
