The Sonex series were only included in detail in one published replacement parts list - this one from 1981, however individual parts were also included in later pages published in 1984.

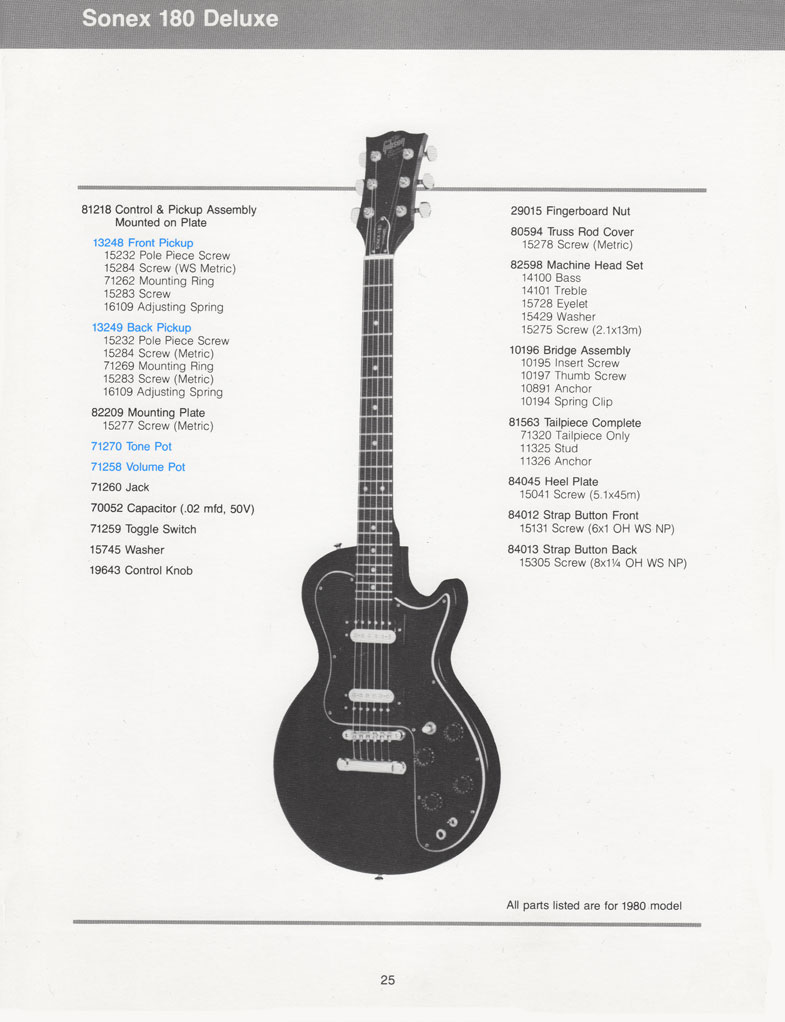

The parts shown here are for the Sonex-180 Deluxe, although the incorrect image has been used; the guitar pictured is actually the Sonex-180 Standard. Components listed in blue can be clicked for further details.
