1976 Gibson L-6S Deluxe
Solid-body electric guitar




L-6S specifications | L-6S controls | shipping figures and pricing | schematics & parts lists | famous users

1976 L-6S Custom | 1976 L-6S Deluxe

1976 Gibson L-6S Deluxe 1976 Gibson L-6S Deluxe 1976 Gibson L-6S Deluxe 1976 Gibson L-6S Deluxe
1976 Gibson L-6S Deluxe 1976 Gibson L-6S Deluxe 1976 Gibson L-6S Deluxe

Strings suitable for this guitar

D'Addario EJ21 (D'Addario Electric Jazz Light)

Dean Markley 2506B (Dean Markley Nickelsteel Electric - Jazz)

D'Addario EJ20 (D'Addario Electric Guitar Strings Jazz Extra-Light)

Gibson LPS Les Paul Signature Electric Guitar Strings (Gibson Les Paul Strings Set 10-46)

D'Addario EXL140 Nickel Light Top/Heavy Bottom (D'Addario XL Light Top Heavy Bottom)

D'Addario EXL130 Nickel (D'Addario Electric Extra Super Light)

D'Addario EXL115W (D'Addario Electric Guitar Strings Blues/Jazz Rock Wound 3rd)

D'Addario EXL110 Nickel Regular Light (D'Addario Electric Regular Light)

Gibson Vintage Re-issue Strings 11-50 (Gibson Vintage Re-issue Strings 11-50)

D'Addario EKXL120 (D'Addario Electric Guitar Strings Super Light / Soldered Twists)

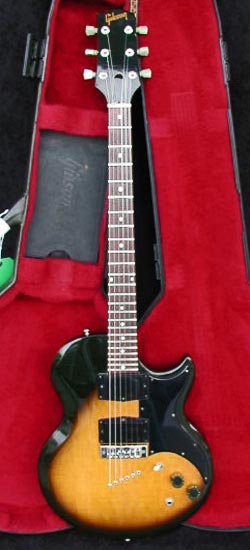

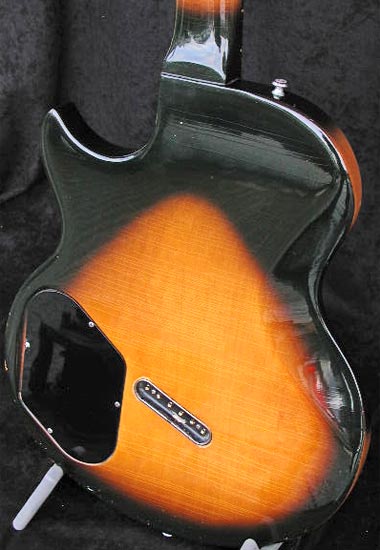

1976 Gibson L-6S Deluxe

The Deluxe version of the L-6S was shipped from 1975 to at least 1979. The last price list it featured in was from June of that year, however Gibson did continue shipping most models for a little while beyond the last price list appearance, and although no shipping figures are available, it is likely some were still shipped in 1980 and maybe 1981. So the guitar pictured is an early one. Tobacco sunburst is the rarest finish for this model, with just 164 guitars shipped (less than 5% of the total) and just 23 shipped in 1976. For further details, see the L-6S production totals.

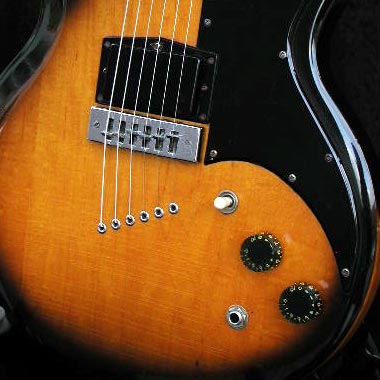

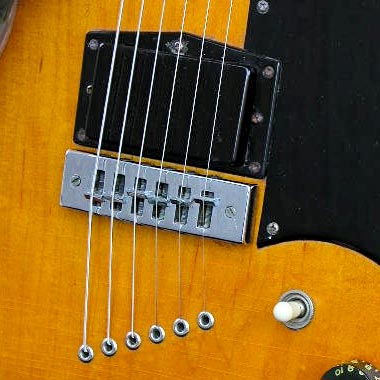

The hardware on this guitar changed very little over the course of it's production. Pickups are plastic-covered super humbuckers, part numbers 13654 and 13655. The bridge is a German-made Schaller tune-o-matic, as used on most solid body Gibson guitars of the mid seventies. Kluson machine heads and Gibson speed knobs. The case (see image below) is a fibreglass Gibson 'Protector' case, which came as standard with the L-6S Deluxe in the late seventies, although 1976 and early 1977 price lists only list a faultless (plush) case.

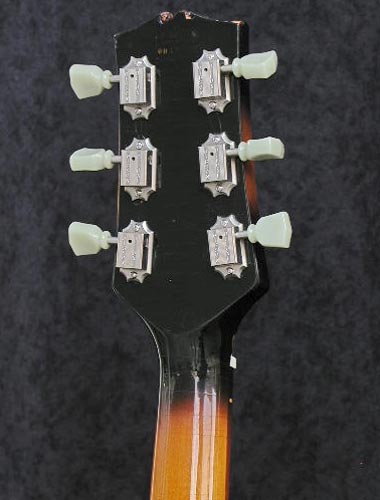

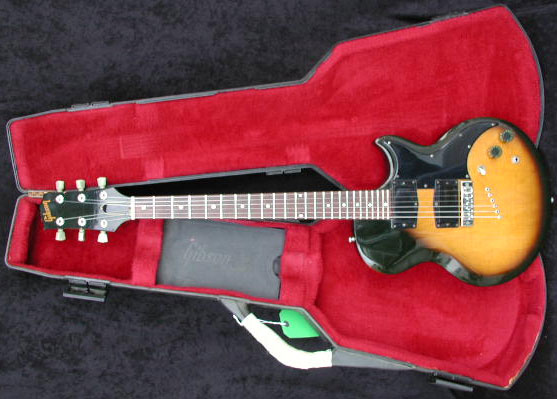

Gibson L-6S logo detailGibson L-6S Deluxe machine head detailGibson L-6S Deluxe with case

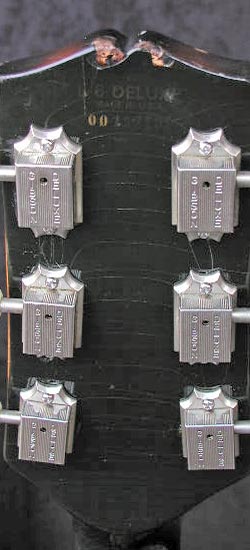

Gibson L-6S Deluxe serial number decal

The Gibson logo on the L-6S Deluxe is a decal, and in between 1975 and early 1977 the serial number was a decal too. This is an eight digit number with the first two numbers representing the year. Interestingly, the decal on this guitar has faded considerably, except for the first two digits ('00' representing 1976), underlining the fact that these are separate from the rest of the serial number.

Images courtesey of justgreatguitars.com

Back to the GIBSON INDEX | comment
