1981 Gibson Victory MV Owners Manual

For the Victory Standard and Artist bass

Other Catalogues

  1981 Gibson Victory MV Owners Manual page 1
1981 Gibson Victory MV Owners Manual page 2 1981 Gibson Victory MV Owners Manual page 3
1981 Gibson Victory MV Owners Manual page 4 1981 Gibson Victory MV Owners Manual page 5

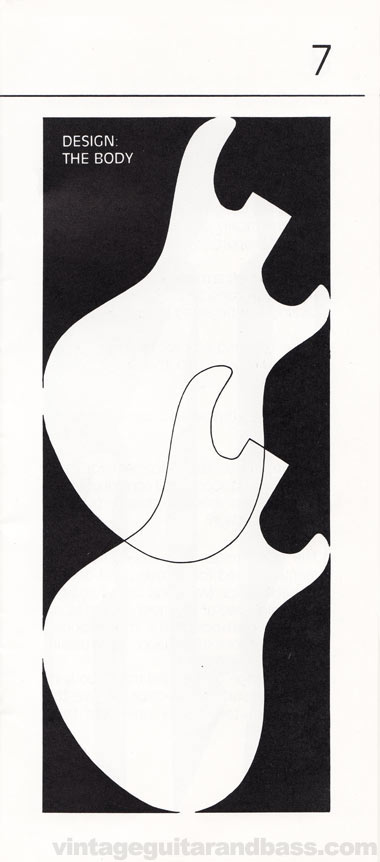

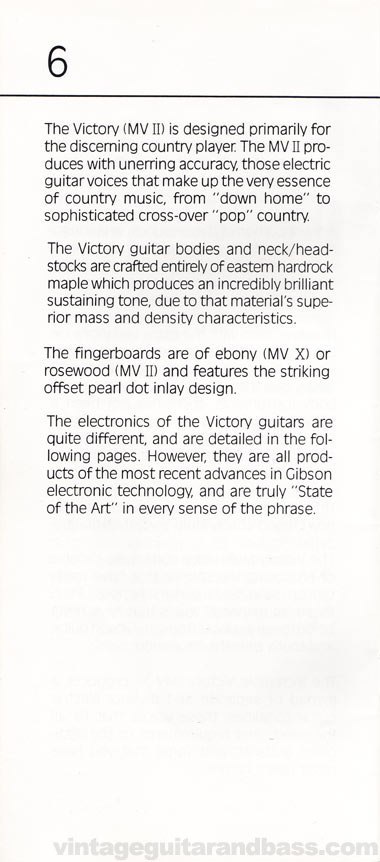

1981 Gibson Victory MV Owners Manual page 6 1981 Gibson Victory MV Owners Manual page 7
1981 Gibson Victory MV Owners Manual page 8 1981 Gibson Victory MV Owners Manual page 9

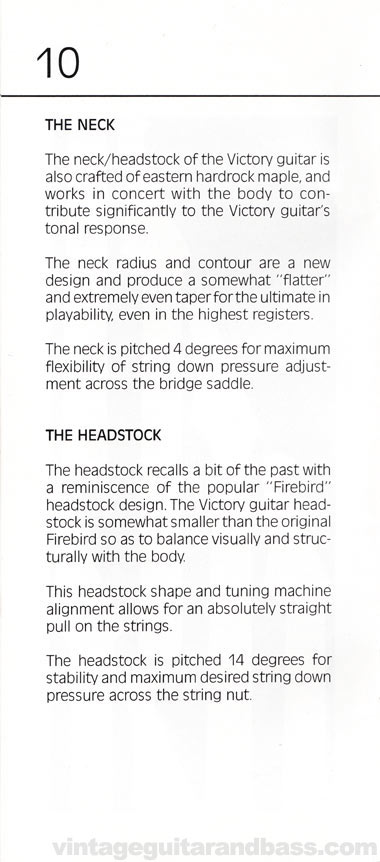

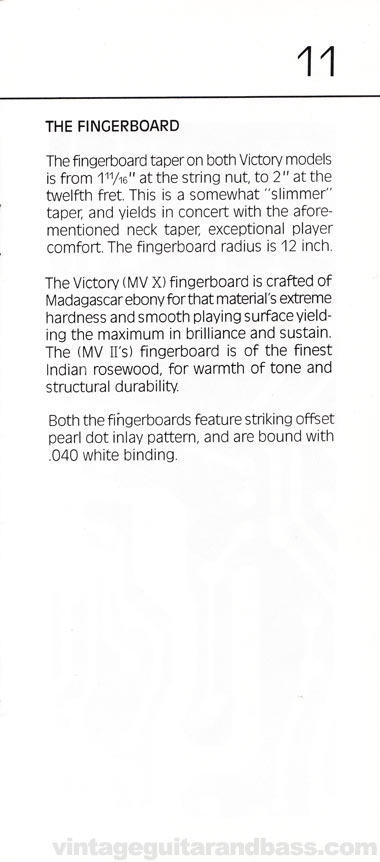

1981 Gibson Victory MV Owners Manual page 10 1981 Gibson Victory MV Owners Manual page 11
1981 Gibson Victory MV Owners Manual page 12 1981 Gibson Victory MV Owners Manual page 13
1981 Gibson Victory MV Owners Manual page 14 1981 Gibson Victory MV Owners Manual page 15
1981 Gibson Victory MV Owners Manual page 16 1981 Gibson Victory MV Owners Manual page 17

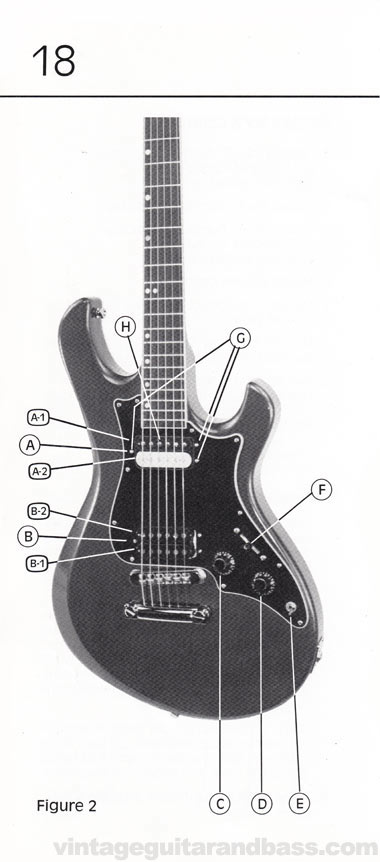

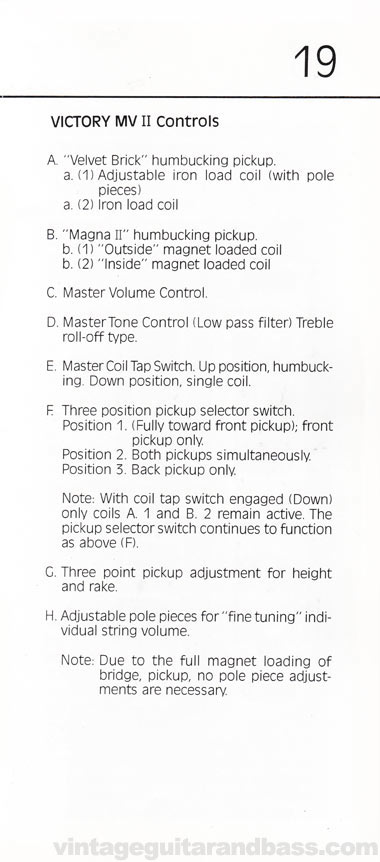

1981 Gibson Victory MV Owners Manual page 18 1981 Gibson Victory MV Owners Manual page 19

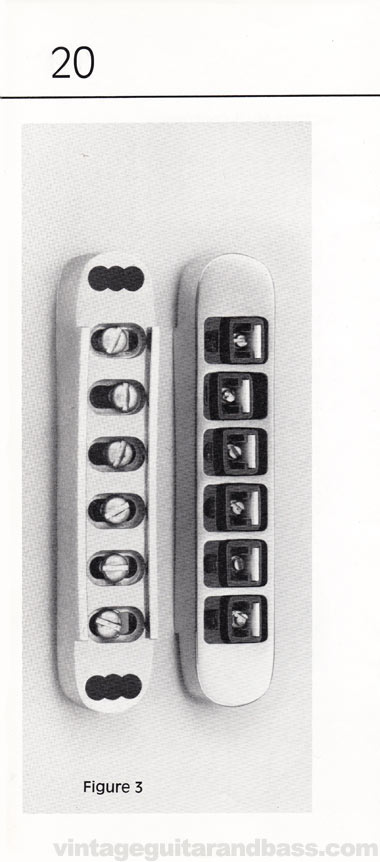

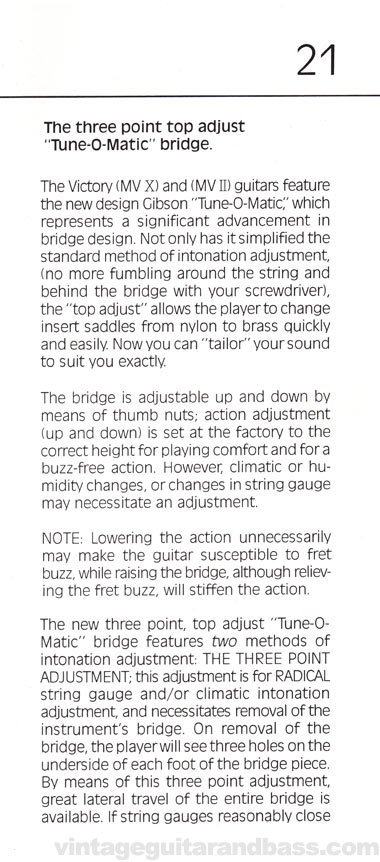

1981 Gibson Victory MV Owners Manual page 20 1981 Gibson Victory MV Owners Manual page 21

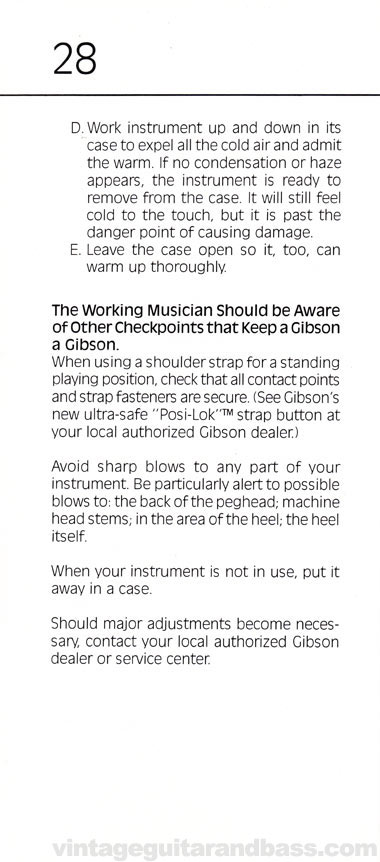

1981 Gibson Victory MV Owners Manual page 22 1981 Gibson Victory MV Owners Manual page 23
1981 Gibson Victory MV Owners Manual page 24 1981 Gibson Victory MV Owners Manual page 25
1981 Gibson Victory MV Owners Manual page 26 1981 Gibson Victory MV Owners Manual page 27

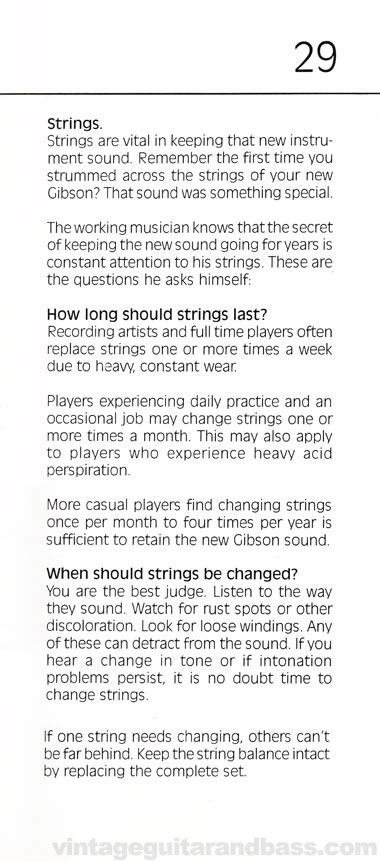

1981 Gibson Victory MV Owners Manual page 28 1981 Gibson Victory MV Owners Manual page 29
1981 Gibson Victory MV Owners Manual page 30 1981 Gibson Victory MV Owners Manual page 31
1981 Gibson Victory MV Owners Manual page 32 1981 Gibson Victory MV Owners Manual page 33
1981 Gibson Victory MV Owners Manual page 34 1981 Gibson Victory MV Owners Manual page 35
1981 Gibson Victory MV Owners Manual page 36

The Victory MV series of guitars (the MVII and MVX) were launched in 1981; the earliest examples were produced at Gibson's legendary Kalamazoo plant, but soon switching to the newer factory in Nashville. This owners manual was produced at the same time, and gives considerable detail of the two models: their construction, electronics (and the operation thereof) and how to care for them.

The Victory did have several new and innovative features, most notably the pickups, designed by Tim Shaw, which are described as "unbalanced"; in that none of the three pickups in the MV-X and two in the MV-II, are the same - each pickup is specially designed for it's position in relation to the other pickups in each guitar. Furthermore, the Victory series is also fitted with an interesting new "top adjust" Tune-O-Matic bridge; a definite improvement on older designs. All of these new features are described in detail within.

The manual is 36 pages long, and is typical Gibson pricelist size, 9" x 4". The first and last few pages contain generic Gibson information, with the Victory-specific info in the following sections:

Design: the body
Design: neck / headstock
Design: electronics, pickups, MV-X controls, MV-II controls
Three point top adjust bridge
Victory MV labelled image
Care and maintenance

see also
1981 Victory MV series pre-owners manual
1981 Victory bass guitar owners manual
