1967 Vox Clubman

One of the final variants of the Vox Clubman, made by JMI in the UK

This page has extra content in the Supporting Members area, including additional images, video content, circuit diagram and scratchplate tracing. If you are a supporting member you can access this here
Two 1967 Vox Clubman guitars with consecutive serial numbers
Model: 1967 Vox Clubman
Pickups: Two chrome covered Vox V1 pickups
Scale: 25 1/2"
Body: mahogany. 17" x 12" x 1" (approx). Overal length 37"
Neck: G-plan Sycamore neck with rosewood fretboard. 21 frets, adjustable at the body end
Width at nut: 1 5/8"
Weight: 2.10kg (white), 2.15 (red)

The Vox Clubman was a British built Vox solid body guitar - very much an entry level instrument, typically with a flat non-radiused sycamore fretboard, no adjustable truss rod, and for the majority of production, a laminate wood body. It was only one step above Vox's most basic model, the single pickup Vox Stroller. But this guitar isn't one of those! It was still built by JMI in Dartford, Kent, but whilst looking rather similar, and still equipped with the same dual Vox V1 pickup configuration, this guitar, hailing from early 1967 is miles above that Clubman in terms of playability.

And it all comes down to the neck. At the other end of the Vox price range were their finest guitar, the Soundcaster; based on the Fender Stratocaster, but probably overpriced in comparison to the real thing. Despite being a great guitar, it never sold well, and had been dropped from JMI price lists by late 1965. Some of these necks were fitted to examples of the Vox Consort, but even though more popular than the Soundcaster, these didn't sell in large numbers either. By early 1967 (or perhaps late 1966), JMI had started equipping some Clubman guitars with these Soundcaster necks. Now these necks had a much nicer curved rosewood fretboard, and truss rod adjustment, and because of the radiused fretboard the same metal floating bridge as fitted to the Vox Victor (and the occasional Consort, Phantom, and perhaps others). This bridge requirement prevented the combination of these necks with the Vox Standard tremolo models, such as the Shadow and Duotone, which, of course, had a combined bridge / tailpiece designed for flat necks.

Bodies were solid mahogany, and with the vastly superior Soundcaster neck, this batch of late issue Clubman were very nice guitars indeed. They are very light (just a shade over 2kg) and wonderfully resonant. It's not clear whether they sold above the normal Clubman price, but if they did not, they must have have offered exceptional value for money. It would be tempting to think that this upgrade was to be a permanent feature of the Clubman had JMI not stopped producing Vox guitars shortly afterwards, however later 1967 examples shipped with the old-style flat neck, so more likely just an attempt to use up old parts, and offer a better guitar for export to the USA, where expectations were generally higher than in the UK. Both of these examples came up for sale in the UK, however, so they were most likely not all exported. The number of Clubman in this batch was probably quite small: all examples i've found to date have very close serial numbers, and the two examples on this page actually have consecutive serial numbers.

In April 1967, the Clubman guitar was listed at £20 5s 0d - this was no significant increase on previous years and must have represented the price of a standard flat-necked Clubman. If the 'Soundcastered' Clubman were sold at a premium, it was not mentioned in printed price lists of the time.

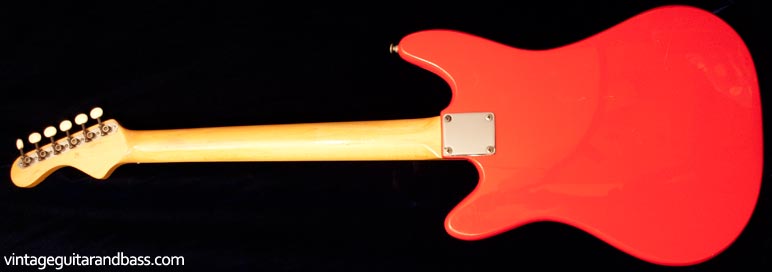

1967 Vox Clubman - back view

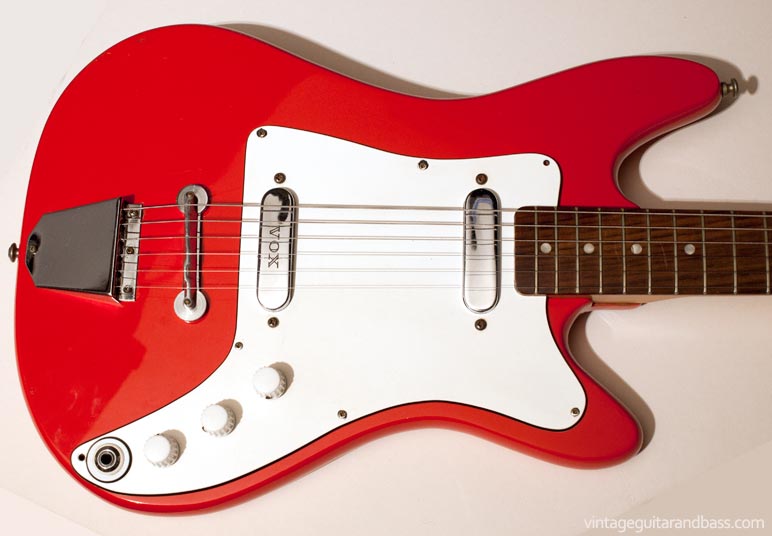

1967 Vox Clubman - body and hardware detail

The actual body shape of these 1967 Clubman, although different to the early 1960s version (check out a 1963 Vox Clubman) had not changed for some years, and neither had the pickup/control layout or scratchplate. But this guitar had a few upgrades beyond the neck fitted: a larger chrome fixed tailpiece, the aforementioned metal floating bridge, and a regular 1/4" output jack. Although floating bridges can be annoying, requiring re-intonating if knocked even slightly, at least near-perfect intonation is guaranteed. The Traffolyte scratchplate is three-ply white / black / white - you can download a tracing of this plate in the Supporting Members Area.

1967 Vox Clubman - bridge and bridge pickup detail
Vox single coil V1 pickup. It was fairly common for mid-late period JMI guitars to have one pickup with Vox designation, and one with none. In this case the bridge pickup is marked Vox. Note the height-adjustable floating metal bridge.

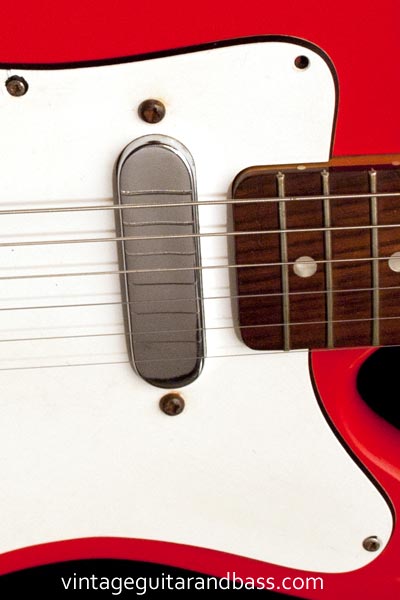

1967 Vox Clubman - neck pickup detail
The neck pickup is also a Vox V1, but with a plain chrome cover rather than a Vox engraved one. Pickups are height adjustable and mounted to the pickguard with two screws.

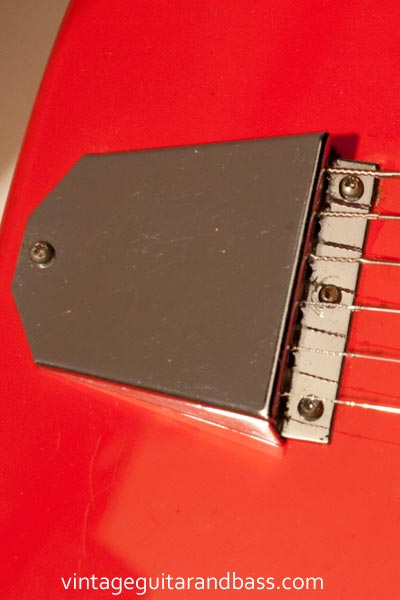

1967 Vox Clubman - tailpiece detail
Late 1966 and 1967 Clubman and Stroller guitars were fitted with a new larger 'wedge' tailpiece than the very lightweight 'hump' tailpiece used for the majority of the 1960s. Although both performed the same job adequately, the new wedge design was a far more attractive component.
1967 Vox Clubman - control and output jack detail
The controls of this late period Clubman were the same volume / volume / tone as used for many years, and still capped with the usual white plastic knobs standard to the majority of 'Strat-style' Vox guitars. The output jack, however, was not the usual BNC coaxial (TV aerial) type, but a more useful 1/4" socket. Due to the shallow nature of the Clubman's body (not deep enough to accommodate this jack), and to conceal the mounting holes of the coaxial connector, an additional Traffolyte mounting ring is included as part of the jack assembly.
1967 Vox Clubman - headstock detail
The Soundcaster neck has a slightly different headstock shape to the standard Clubman, but the decals applied are true to an other Clubman: 'Vox' in green and black, and the 'Clubman' model designation above JMI Dartford Kent. Note the hexagonal tuner bushings; another higher end feature, though by no means exclusive to the Soundcaster. Most Clubman typically had lightweight rounded bushings.
1967 Vox Clubman - reverse headstock detail
Tuning keys are Van Ghent strip keys, JMI part 09-114-0. These are standard to the Clubman, and to be fair most JMI Vox guitars, though higher end models, including the Soundcaster would have had metal buttons and metal 'Vox' emblazoned covers. Note the 5 digit serial number stamped into the back of the headstock.

1967 Vox Clubman video clips

Subscribe to the vintageguitarandbass youtube channel for more vintage guitar and bass demos. Also, check out the other videos of this guitar in the supporting members area.

1967 Vox Clubman / 1973 Fender Vibrolux - jazz blues (extract #1, 1m 12s)

Find out more about these instruments here: 1967 Vox Clubman, 1973 Fender Vibrolux Reverb

This clip shows a rather atypical Vox Clubman (with rosewood fretboard and adjustable neck), played through a 40w 2x10" silverface Fender Vibrolux. Nice guitar, superb amp! Strung with Gibson bright wires (10-46). Check out the link above for the specs of this unusual variant of the Vox Clubman, and watch the long version of this video in the vintageguitarandbass supporting members area, to hear a bit more of this guitar / amp under different settings.

Recorded here with a Shure SM57 (left channel) and a Heil PR-40 (right channel), through a Focusrite Scarlett 2i2 interface - highly recommended gear!

1967 Vox Clubman / 1973 Fender Vibrolux - vintage guitar demo, long version (long version, 4m 18s)

Find out more about these instruments here: 1967 Vox Clubman, 1973 Fender Vibrolux Reverb

The Vox Clubman is known as a pretty straightforward guitar, with a flat fretboard and no truss rod adjustment. But this example from 1967 was factory fitted with the same neck as the Vox Consort or Soundcaster: i.e. a curved rosewood fretboard on a fully adjustable neck, with floating metal bridge to match. Combined with a lightweight mahogany body, and Vox's V1 pickups, it makes a pretty respectable, instrument; far better than your typical mid-sixties Vox Clubman. Read the story in the link above. Played here through a 40w 2x10" silverface Fender Vibrolux, it sounds pretty nice! This guitar is strung with Gibson bright wire strings (10-46).

Recorded here with a Shure SM57 (left channel) and a Heil PR-40 (right channel), through a Focusrite Scarlett 2i2 interface - highly recommended gear!


1967 Vox Clubman 'supporting members' content

Extra content on this guitar is included in our Supporting Members area here

  • 32 extra images (with description): large detailed images including body routes, circuitry, components
  • Detailed wiring diagram
  • Pickguard tracing (PDF for accurate printing)
  • Extra video content (1 videos, 4m 18s: Fender Vibrolux Reverb)
