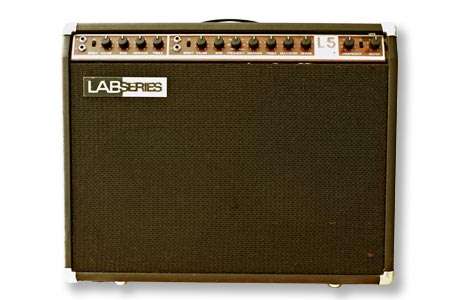

The 100w 2x12" Lab Series L5
The Lab Series amplifiers were the result of a collaboration between Norlin companies, Gibson and Moog. The L5 was the first and best selling model of the series, aimed at competing with the Fender Twin Reverb. It was a two channel, 100 watt amp with spring reverb and two 12" speakers. Controls were as follows. Channel 1: bright mode, volume, bass, midrange, treble. Channel 2: bright mode, volume, bass, frequency, midrange, treble, multifilter, reverb. Both channels: compression, master volume. For a description of these controls, see Lab Series controls. Each channel had two inputs, for hi gain pickups (top) and lo gain pickups (bottom).
Channel 1 controls: hi/lo input, bright mode, volume, bass, midrange, treble.

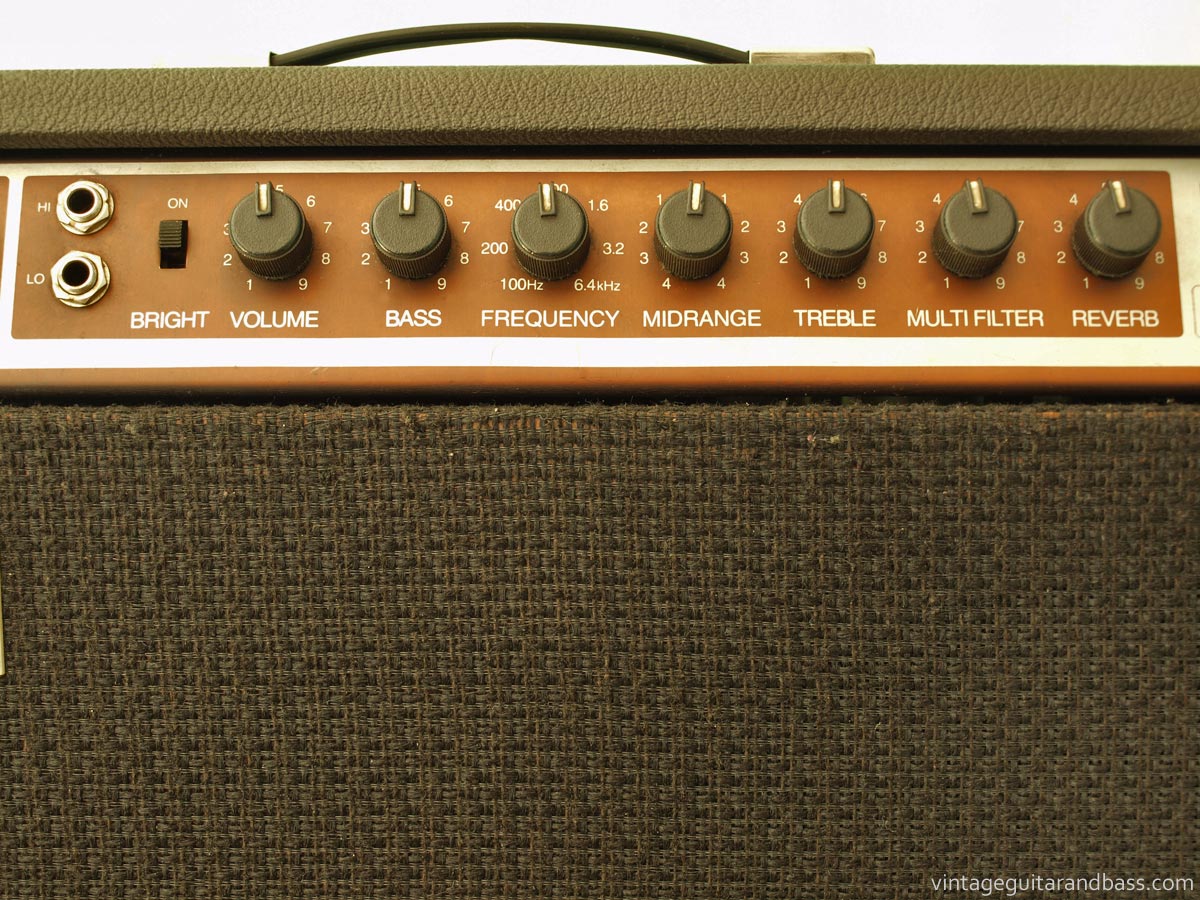

Channel 2 controls: hi/lo input, bright mode, volume, bass, frequency, midrange, treble, multifilter, reverb

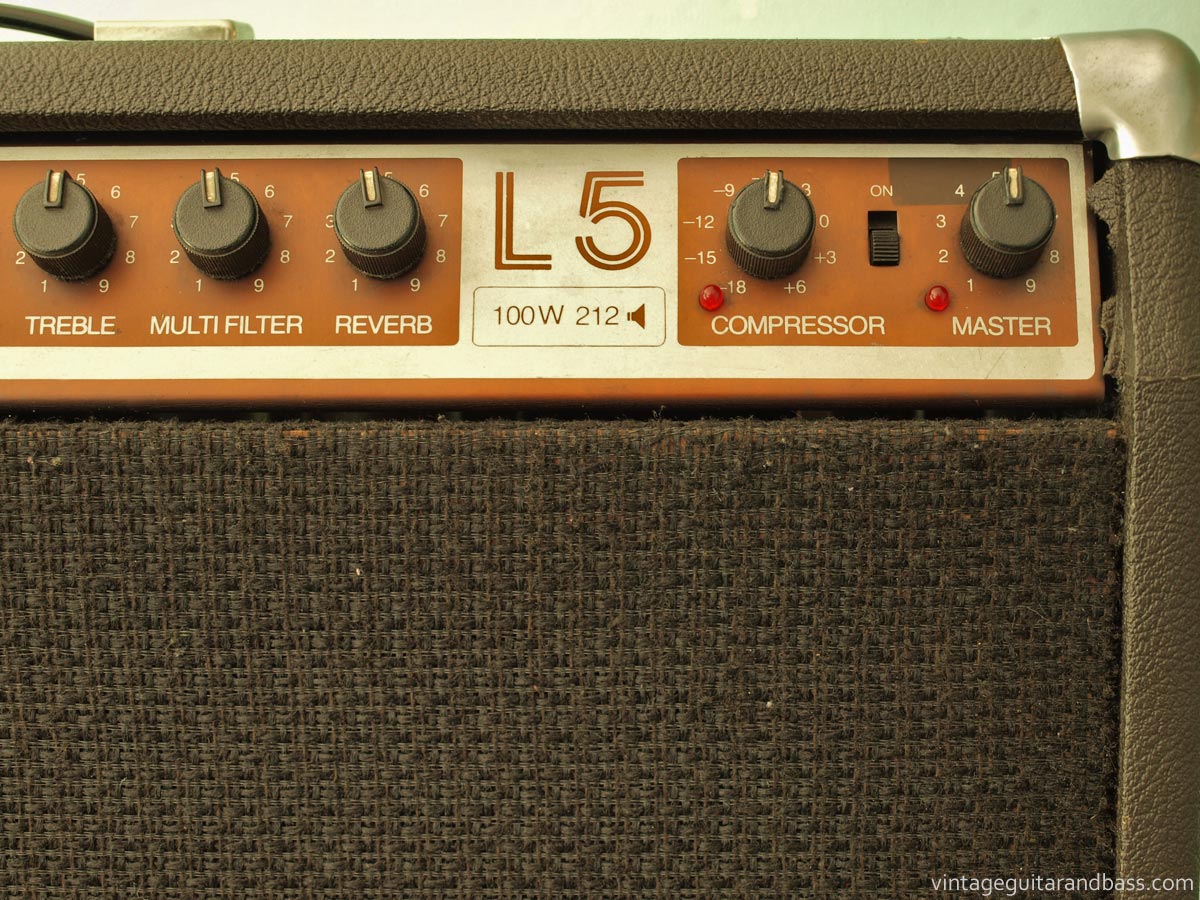

The compressor and master volume work on both channels 1 and 2

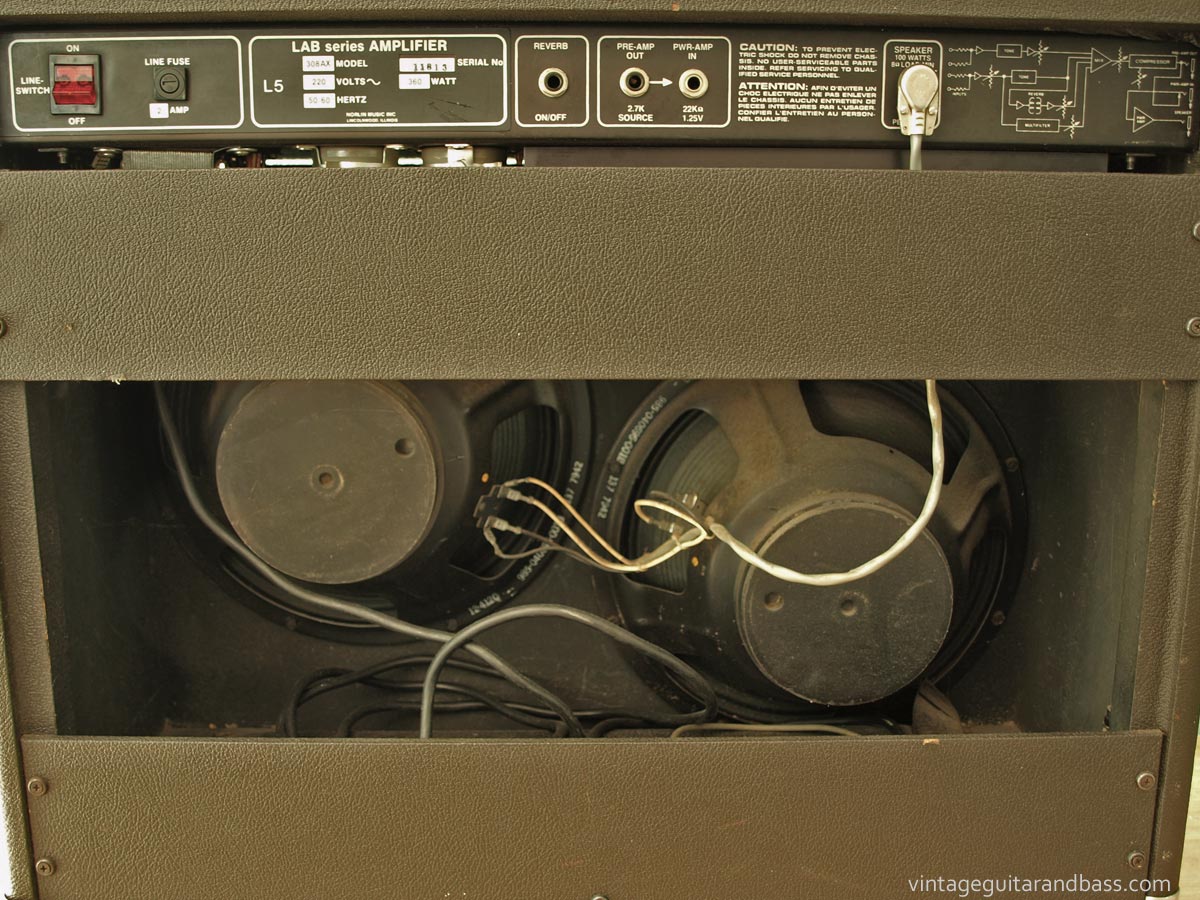

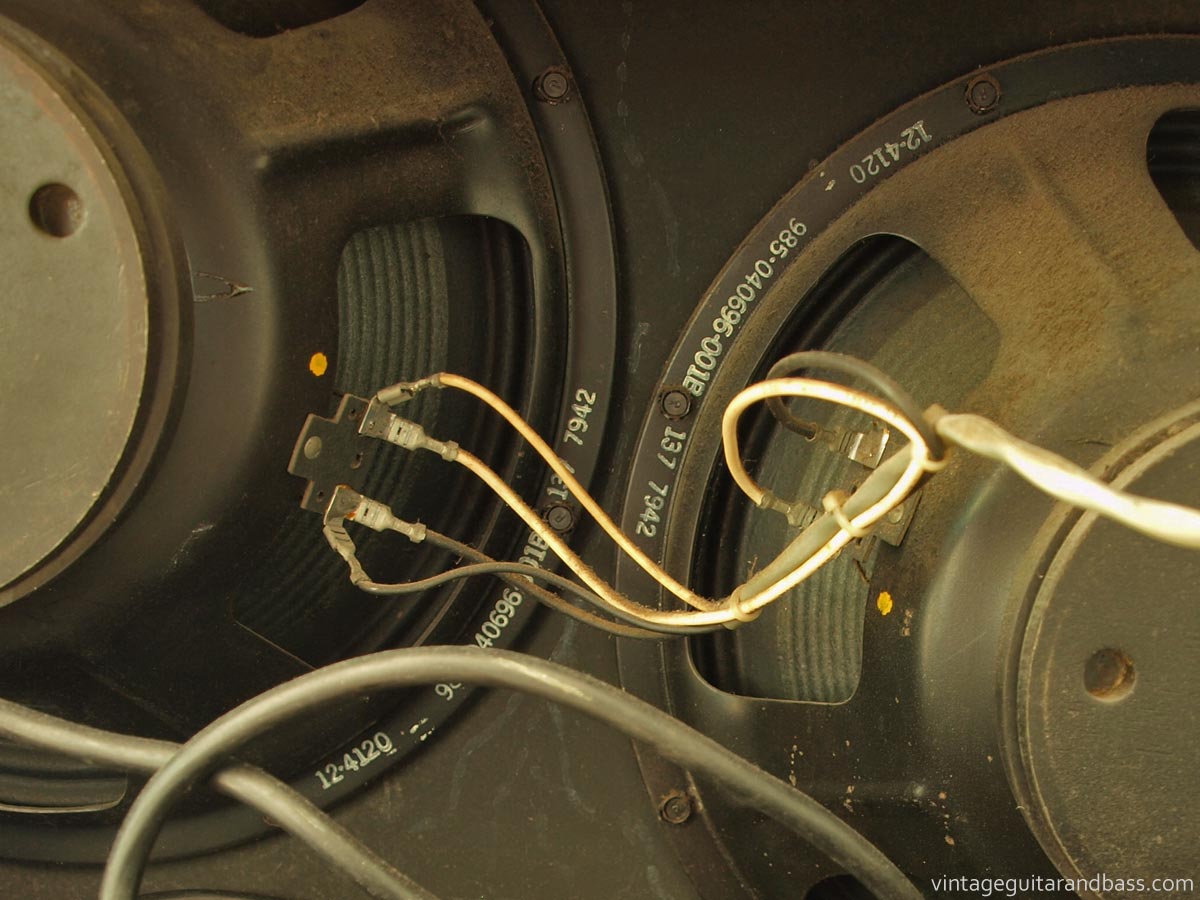

The two 12" speakers. Note the codes around the rim: 137 7942. 137 signifies that these speakers were made by CTS, with 7942 a date code. This decodes to the 42nd week of 1979.
Amplifier advertisements originally published from 1978 onwards. Click on the images for larger copies. Check out other vintage Gibson advertisements
Gibson Lab Series L5 - A new instrumental album featuring a man, his guitar, and our amplifier (1978)
One of the earliest publicity pieces for the Lab Series amplifiers placed in mid 1978. Unlike the majority of adverts for these amplifiers to follow, this one is short on text, letting the images d...
Gibson Lab Series L5 - LAB Series (1978)
June 1978 advertisement for the Lab Series amplifier range, picturing the 2x12" Lab Series L5 combo.
Gibson Lab Series L5 - Employment Assurance (1979)
"Whether you're a star, a sideman, a session player, or a serious student, the Lab Series works"
Gibson Lab Series L5 - It's got to be about the best tranny amp I've ever heard – damn it, it's got to be one of the best apps I've heard, tranny or not! (1980)
This 1980 advert for the Lab Series amplifier range was published in Guitar Player in 1980, and is made up of quotes by Gary Cooper (who proffered the title), Alan Holdsworth, and Whitesnake's Bern...
Gibson Lab Series L5 - Try my sound.. See if you like it! (1980)
This interesting advert from June 1980 features Jimmy Messina and the Lab Series L5. Like many of the other Lab Series ads, it includes quotes from the artist describing the amp, but also gives one...
Gibson Lab Series L5 - Lab Series. They've never sounded so good (1980)
December 1980 United Kingdom advert for the Lab Series amplifiers - available at a big discount due to the favourable exchange rate. Models listed are the: L2 (100w 1x15" bass head/cabinet), L3 (60...
Gibson Lab Series L5 - "My Lab Series amp takes all the bumps, and still gives a smooth performance." (1981)
This Lab Series advert featuring bluesman B.B. King and his L5 appeared in Guitar Player magazine in May and August 1981 - just one of many 'artist' adverts for the amp line. King's bassplayer, Joe...
