Service information for Fender dealers, 1968 (with pictures of circuitry), 1969 and 1976. Part lists of components with associated numbers. Some of these part lists are reproduced here. Scroll down, or jump to:

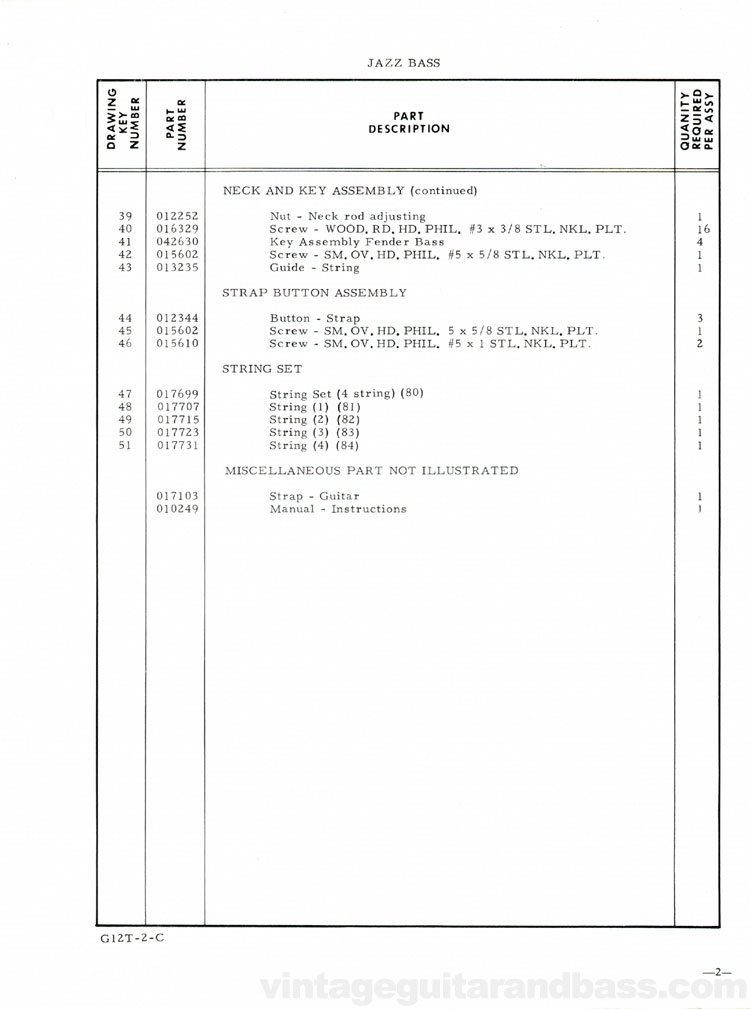

The 1968 Fender Jazz bass service manual. A single sheet folded into several pages, to include a photo of the bass on the cover, a detailed parts list spanning two pages, and two very accurate illustrations, of the bass itself and the pickup/control assembly wiring. 5 pages.
The 1969 parts list is just that - for more detailed service information, including parts lists, but also including wiring and component images, see the 1968 parts list, above.

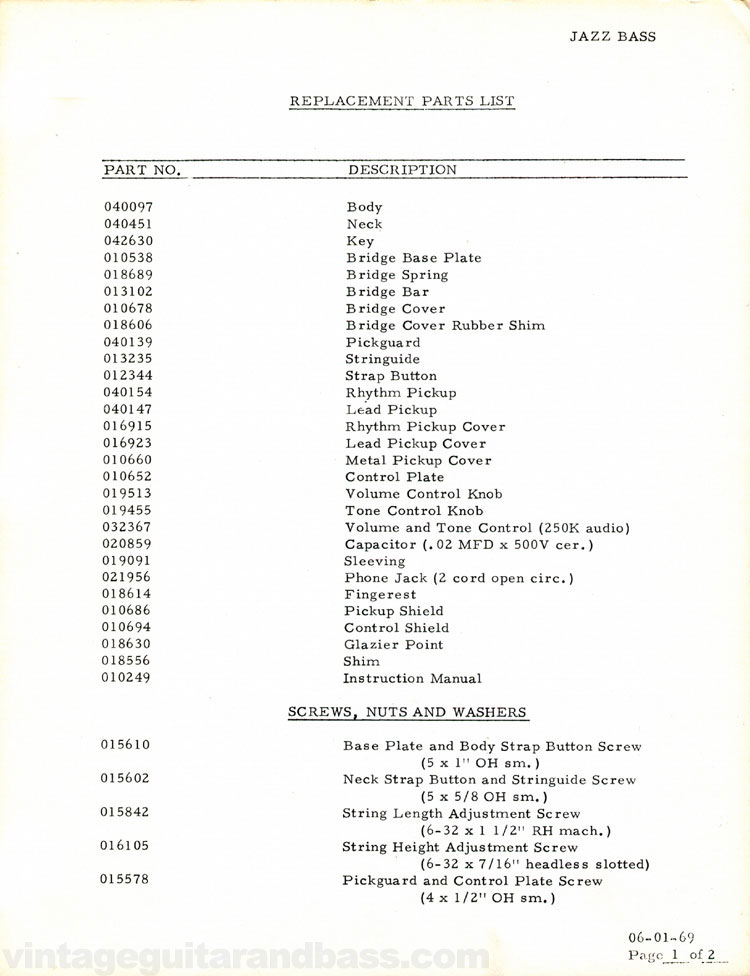

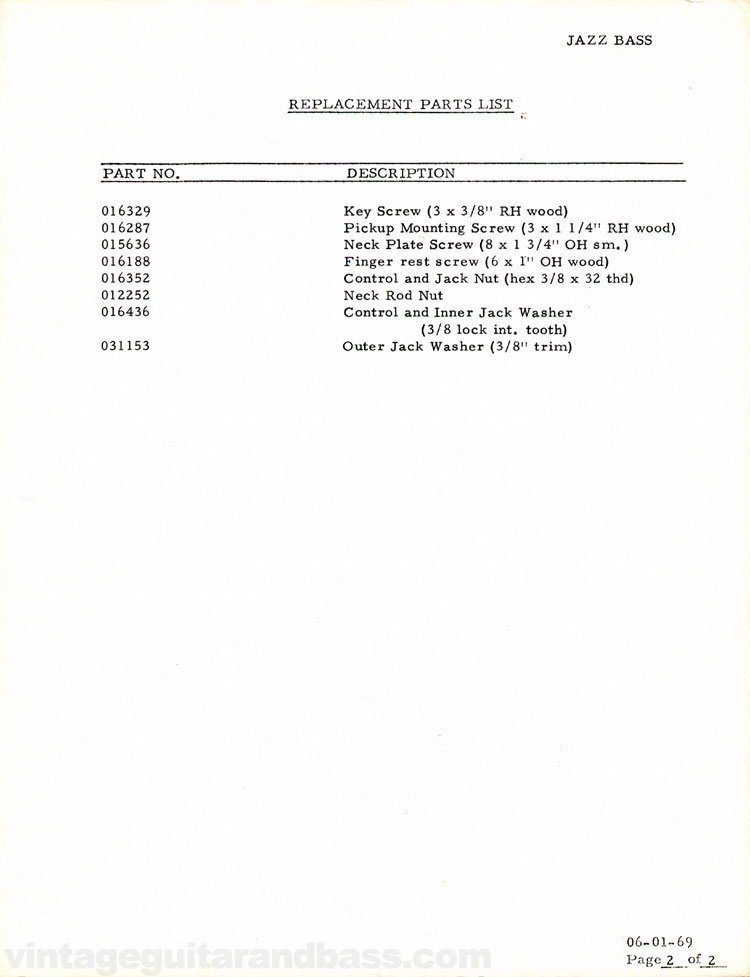

This service manual is dated June 1969, and is a simple list of parts and their codes - two pages.
The 1976 Jazz bass service information includes a labelled image of the bass, the volume and tone wiring, and the bridge - naturally, also with the list of parts and numbers.
