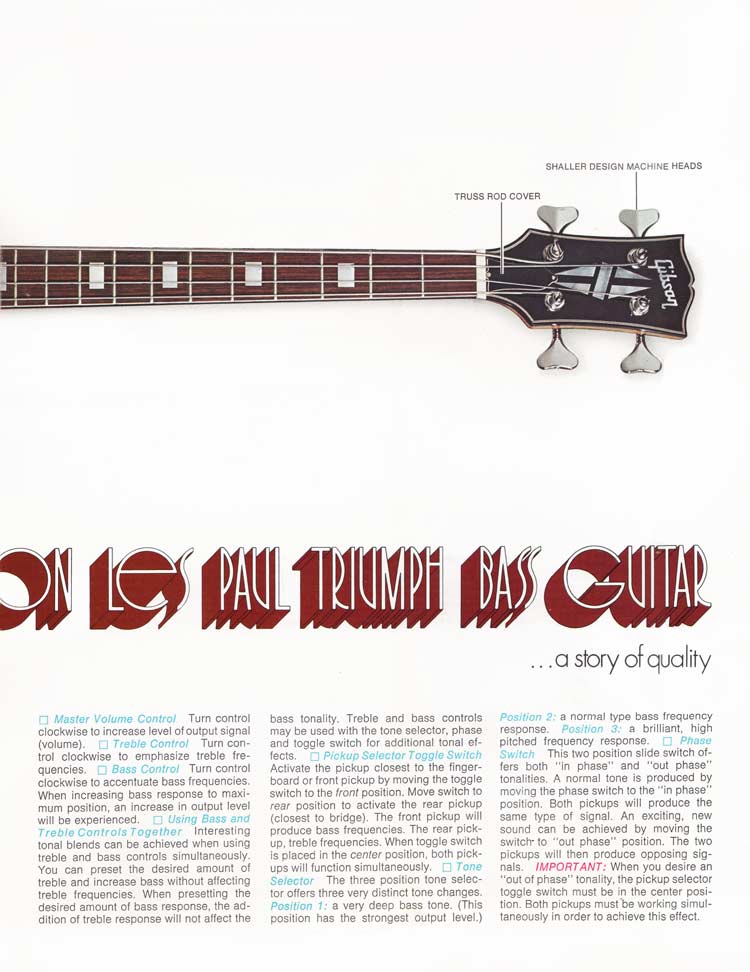

Right hand page of a two-page spread. This page holds the descriptions of the controls of the Gibson Les Paul Triumph bass continued from page 2. Pictured is the neck and headstock of the bass, showing the rosewood fretboard with block position markers, and Schaller M4 machine heads.
Details of the treble and bass controls and tone selector appear on this page. The key difference electronically between this bass and it's sibling model the Gibson Les Paul Recording guitar lies in the function of this tone switch. The Tone switch (going from positions 1-3) reduces the number of turns active in the pickup coils. As such the treble and bass controls work as expected in all tone selector positions. The recording guitar actualy removes the treble and bass controls from the circuit in positions 1 and 3. See the corresponding Les Paul Recording manual for more.
Interesting tonal blends can be achieved when using treble and bass controls simultaneously. You can preset the desired amount or treble and increase the bass without affecting treble frequencies. When presetting the amount of bass response, the addition of treble response will not affect the bass tonality. Treble and bass controls may be used with the tone selector, phase and toggle switch for additional tonal effects
The phase switch sets the two pickups in, or out of phase with each other. Naturally this will only work if both pickups are selected, and works optimally if the relative output amplitudes from each pickup is matched.
An exciting new sound can be achieved by moving the switch to "out phase" position. The two pickups will then produce opposing signals. IMPORTANT: when you desire an "out-of-phase" tonality, the pickup selector switch must be in the center position
Obviously only the neck is pictured here - see the previous page for the rest of the guitar. The Recording guitar has a three-piece quarter-sawn mahogany neck, with rosewood fretboard, mother-of-pearl block position markers and split diamond motif - the same headstock markings as the Les Paul Custom, though of course, the Custom had an ebony fretboard and gold plated hardware. 22 frets, 24 3/4" scale, width at nut 1 11/16".
