Gibson Byrdland

Thin line semi-acoustic guitar

1958 Gibson electric guitar and bass catalogueFrom the 1958 Gibson electric guitar and bass catalogue

This cutaway electric Spanish guitar, with its thin body and extra-narrow, short-scale neck, is easier and less tiring to hold and permits playing chords previously beyond reach

1960 Gibson full line catalogueFrom the 1960 Gibson electric guitar and bass catalogue

At the top among guitars! Designed by famed guitarists Billy Byrd and Hank Garland

1962 Gibson full line catalogueFrom the 1962 Gibson electric guitar and bass catalogue

The first Gibson catalogue to show the Byrdland with it's new Florentine cutaway; prior to this it had the more rounded Venetian cutaway body style

1963 Gibson electric guitar and bass catalogueFrom the 1963 Gibson electric guitar and bass catalogue

The Byrdland is outstanding tor performance and beauty—the result of premium materials and superb Gibson craftsmanship. Tone and response are stunning

Gibson 1966 Full Line catalogueFrom the 1966 Gibson full line catalogue

...the Gibson Byrdland continues to be the choice of artists who demand oustanding performance in a guitar with slim comfort, feather touch action and exceptional tonal response

1970 Gibson thinline catalogueFrom the 1970 Gibson thinline catalogue

A supreme acheivement in a thin electric acoustic. The Byrdland is designed for the artist who demands perfection in appearance and performance. The extra narrow, short scale neck makes diffcult chord positions easy to reach

1972 Byrdland ShowcaseGibson 1972 Byrdland showcase, part of the guitar of the month series

...the playing artistry of Billy Byrd and Hank Garland brought about a guitar that has been admired for years by thousands of discriminating guitarists, the Gibson "Byrdland"

1978 Gibson catalogueFrom the 1978 Gibson catalogue

Custom carved spruce top. Curly maple back and rims. Graceful Venetian cutaway

1981 Gibson (Rosetti) catalogueThe 1981 Gibson (Rosetti) catalogue

1983 Gibson catalogueFrom the 1983 Gibson catalogue

The Byrdland stands alone amongst modern archtops. Owing to the particular vision of Nashville pickers Hank Garland and Billy Byrd. Thinner than most Gibson custom carved instruments, the Byrdland is a joy to play - even more of a joy to hear

Gibson Byrdland
Gibson Byrdland

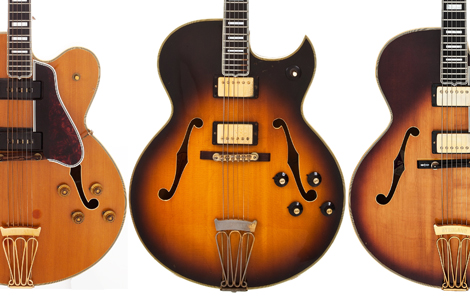

Top: mid sixties Byrdland, with Florentine cutaway. Below: 1970 Byrdland with Venetian cutaway

The Byrdland is a particularly fine Gibson jazz archtop guitar, designed by, and taking its name from, Billy Byrd and Hank Garland - two influential jazz guitarists of the 1950s, and produced at Gibson's famous Kalamazoo plant. As the 1972 Gibson Showcase brochure states, "craftsmanship, playability and tonal performance have been the 'key elements' in the design" of the Byrdland. It debuted in 1955 and has been on Gibson price lists ever since.

It was one of the earliest 'thin' electric acoustic guitars, based on the L-5CES. Initially four prototypes were produced in April 1955 (two natural, two sunburst); one each for Byrd (natural) and Garland (sunburst), and two for Gibson's promotional purposes, and indeed these were labelled as 'special thin models' of the L-5CES. These were, of course, conceived in the days before the advent of the Gibson ES thinline series. As described in early advertising (see the 1957 advertisement featuring messrs Garland and Byrd, below left): "it's thin body... it's narrow, short scale length... gives it unusually fast and brilliant tonal response, combining the characteristics of the solid body and conventional guitars."

The first examples completed in June 1955, and although first demonstrated at the July 1955 NAMM show, it was not actually available to buyers until 1956. See the Gibson Byrdland shipping stats here. Initially it had a rounded Venetian cutaway; the same body shape and size as the L-5 CES, ES-5 Switchmaster and ES-350, although it, and the ES-350 were shorter scale than the L-5CES and ES-5 (23 1/2" compared to 25 1/2") - specifically for easy jazz chording and soloing.










ModelGibson Byrdland
Available1955-date
PickupsTwo single coil P90s (1955-59) changing to humbuckers from 1959/60
Scale23 1/2"
BodyCarved spruce top, curly maple rims and back. Two body styles available with Venetian (1955-early 1961, 1968-1985) or Florentine (1961-1968) cutaway. Currently both cutaway styles are available from the Gibson Custom shop.
NeckThree piece (changing to five-piece in around 1965) curly maple short scale neck. Ebony fingerboard, pearl block inlays. Joins body at the 14th fret
Frets22
Hardware2 volume, 2 tone, gold hardware throughout
FinishesNatural, Sunburst, Wine Red (1977-79), Ebony (1977-79), Vintage Cherry Sunburst (1983-85)

1957 advertisement for the Gibson ByrdlandThe first print advertisement for the Gibson Byrdland, from March 1957
Jazz strings suitable for this guitar

D'Addario ECG24 (D'Addario Chrome Flat Wound Electric Guitar Strings Jazz Light)

D'Addario XLS600 (D'Addario Stainless Steel Electric Guitar Strings Jazz Medium)

D'Addario EXL115W (D'Addario Electric Guitar Strings Blues/Jazz Rock Wound 3rd)

D'Addario EJ20 (D'Addario Electric Guitar Strings Jazz Extra-Light)

D'Addario EHR350 (D'Addario S/Steel Half Round Electric Guitar Strings Jazz Light)

D'Addario EXL115 (D'Addario Electric Blues/Jazz Rock)

The Gibson New for '61 flyer heralds the change to a "deeper Florentine cutaway body... for easier, more comfortable playing in the upper register, and to permit the playing of many chords and intervals previously beyond reach"

From 1962 the Byrdland was advertised in price lists as custom order only.

The following description is taken from the 1970 Gibson catalogue:




BYRDLAND-N
A supreme achievement in a thin electric acoustic, the Byrdland is designed for the artist who demands perfection in appearance and performance. The extra narrow, short scale neck makes difficult chord positions easy to reach.

FEATURES: Carved spruce top with select curly maple rims and back. Extra narrow five-piece curly maple short scale neck joins body at the 14th fret. Adjustable truss rod. Ebony fingerboard with pearl block inlays. Adjustable Tune-O-Matic bridge. Powerful twin Humbucking pickups with separate tone and volume controls. Three position toggle switch to activate either or both pickups. 17" wide, 21" long, 2 ¼" thin; 23 ½" scale, 22 frets.

Byrdland - Sunburst finish
Byrdland N - Natural finish

603 - Faultless plush-lined case
ZC-3 - Deluxe zipper case cover


Similar models
Gibson ES-350TD
Gibson L-5 CES
Gibson ES-5 Switchmaster
