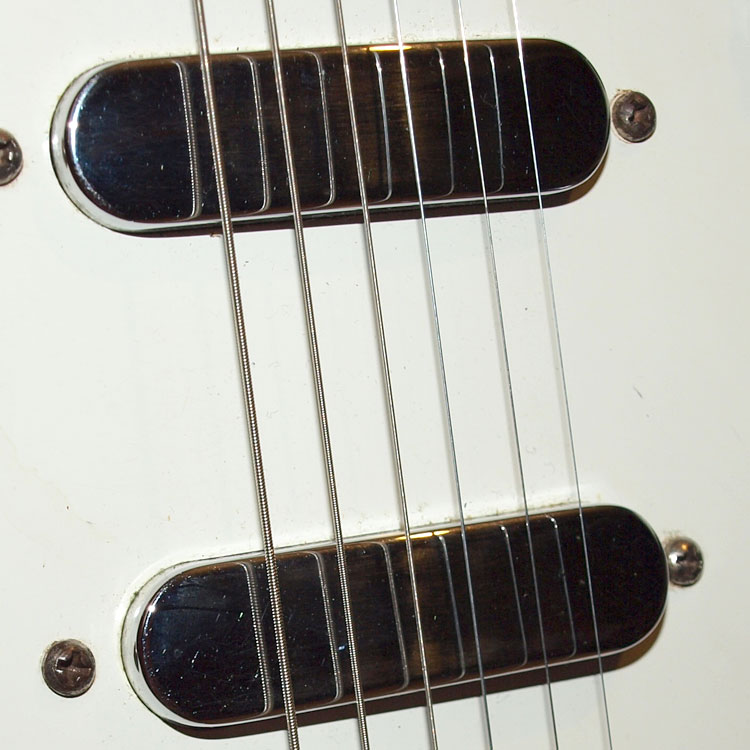

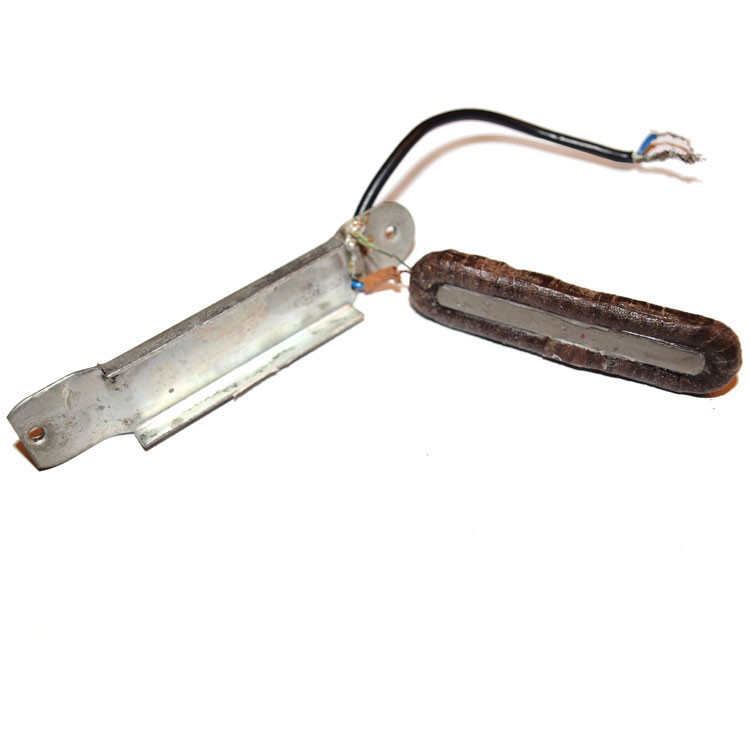

The bassplate is straightforward in design; made from pressed aluminium. Compare this to the very earliest pickup used by Vox on the first examples of Shadow
- the coil and magnet arrangement is broadly similar, however the bassplate/mounting tabs are constructed quite differently

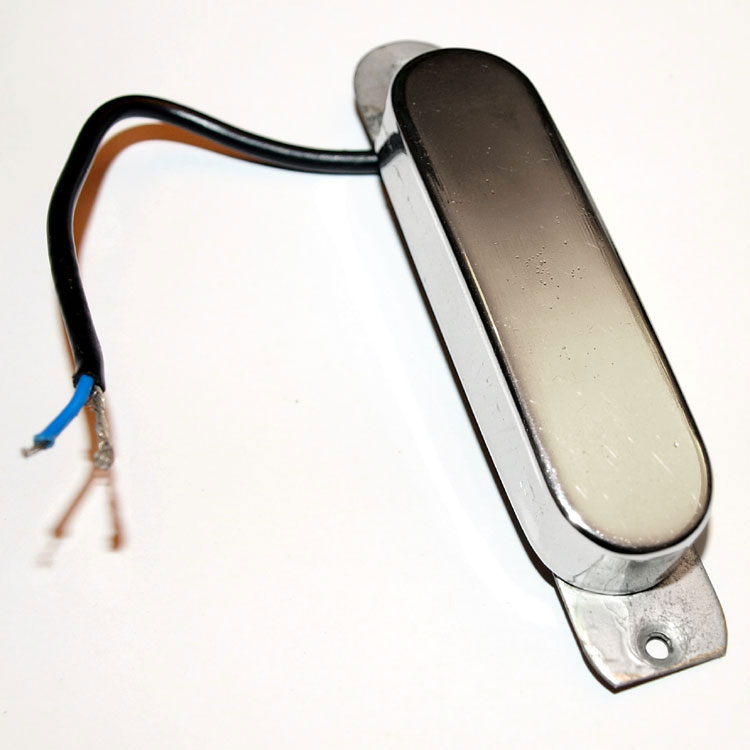

The unmounted pickup, with lead. The pickup bass plate is 100mm long, with a distance between mounting holes of 88mm

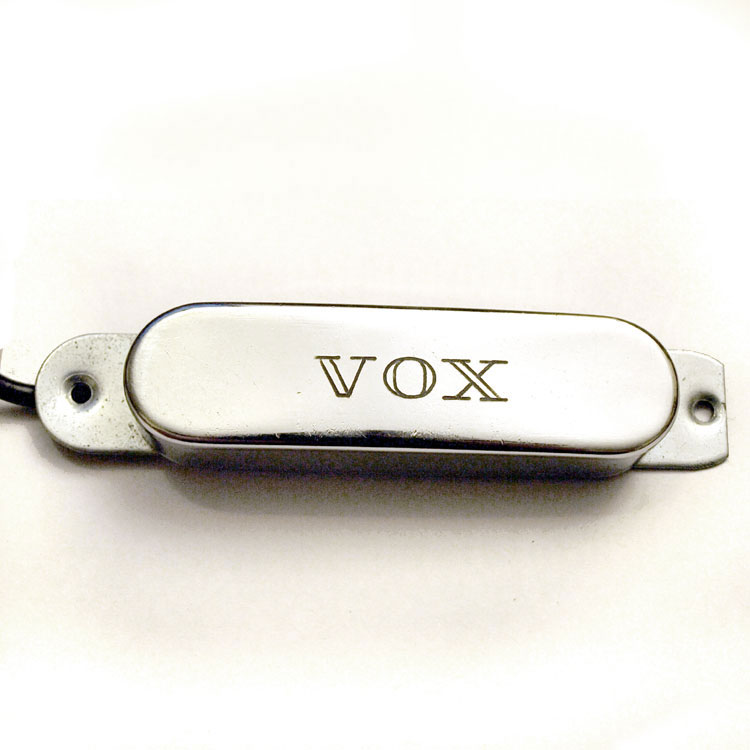

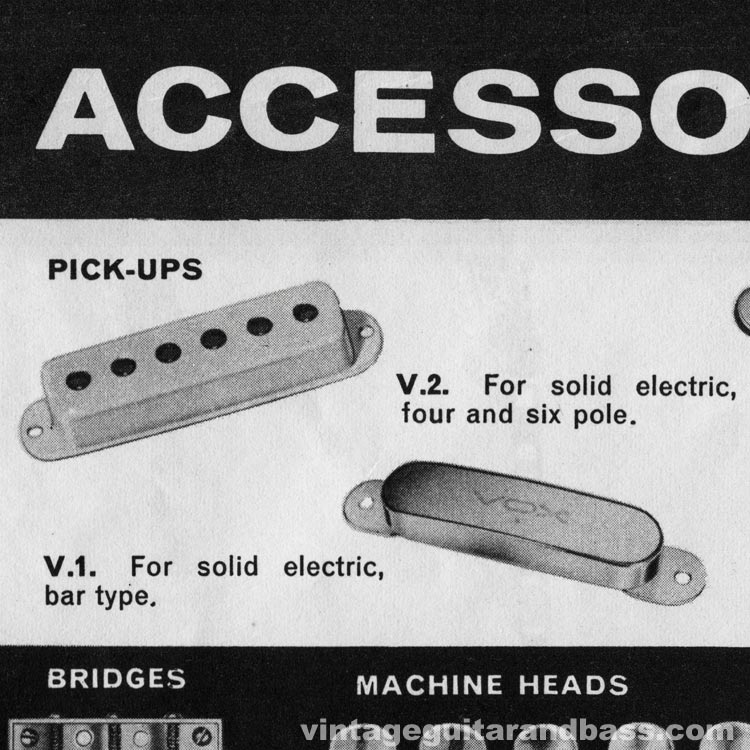

Close up of the engraved VOX logo that adorned many (but not all) of the chrome guitar and bass single coil pickups that JMI used on UK Vox guitars in the early to mid 1960s.

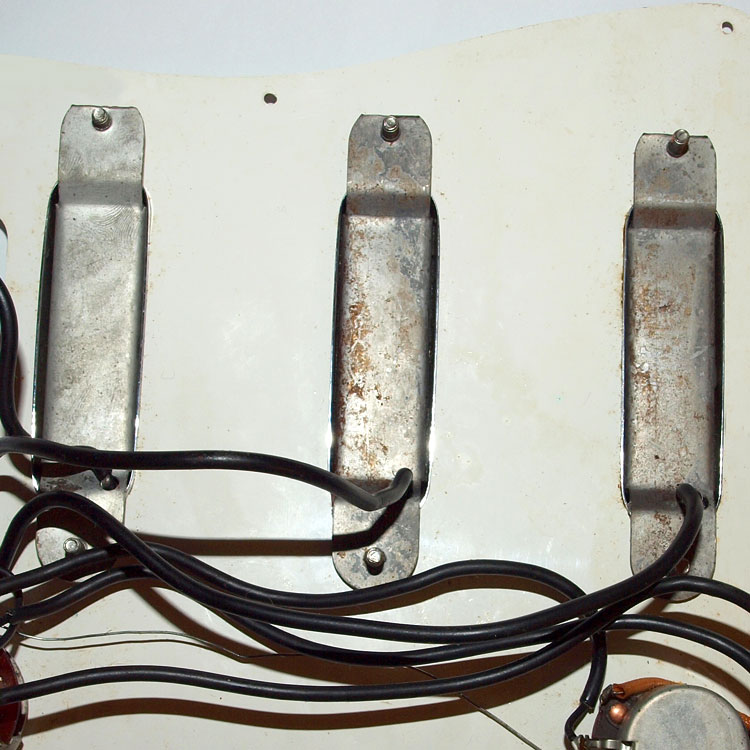

Underside view of three Vox V1 pickups attached to the scratchplate - taken from a Vox Shadow

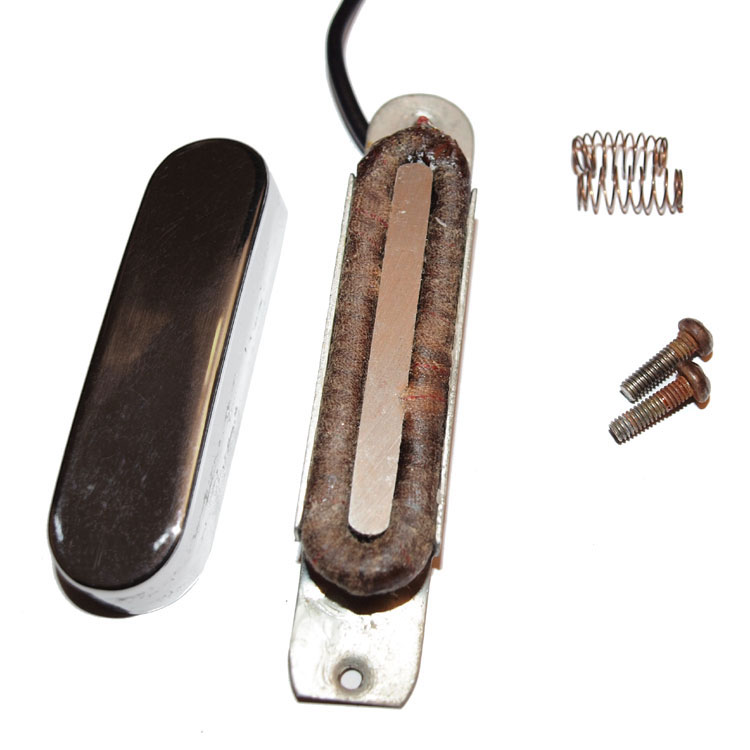

This is a really simple pickup: a single coil, wrapped in waxed cloth, around a central magnet. The chrome cover just pushes on. The bassplate holes are threaded for the mounting screws; the springs act as spacers between the bassplate and scratchplate.
