Matsumoku closed gear bass tuners >> Vintage Guitar and Bass

MATSUMOKU | PARTS | TUNING KEYS | CLOSED GEAR BASS TUNERS

As fitted to a variety of Matsumoku bass guitars

Some guitars fitted with this bridge

It is unclear which Japanese manufacturer produced these tuning keys, and they are fitted to instruments from various makers.

As fitted to Matsumoku-built basses branded: Aria (1820), Epiphone (1802T / ET-280), Shaftesbury ...and most likely others.

List of Matsumoku tuning keys

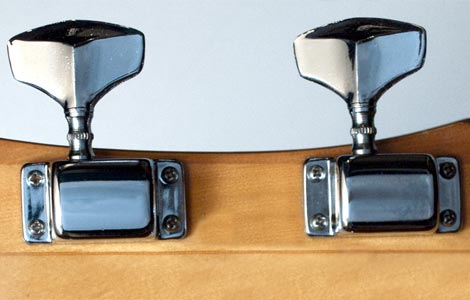

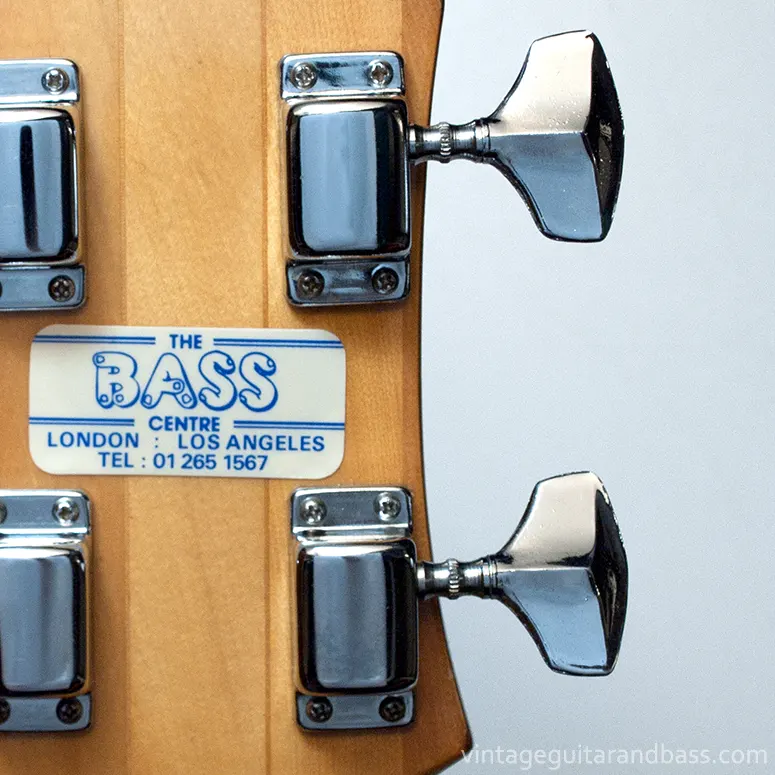

Matsumoku closed gear bass tuners, reverse headstock view

The headstock reverse of a 1971 Epiphone 1820 bass. The closed gear tuners used on this bass appear on numerous Japanese instruments of the period. Note the angled metal keys. There seem to be several very similar variants of these, and many Matsumoku basses have very similar tuners with black plastic buttons.

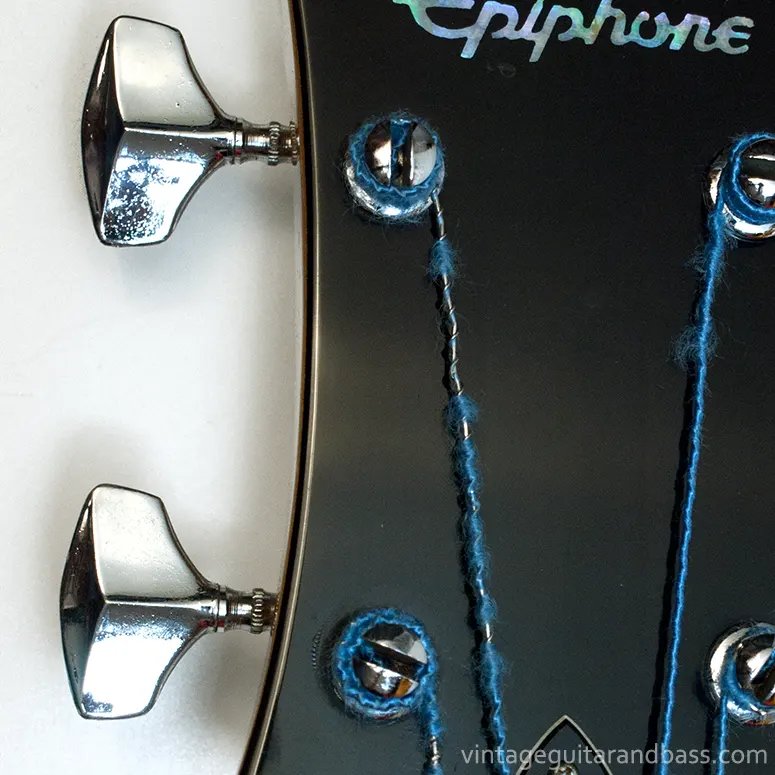

Closed gear bass tuners, front of headstock view

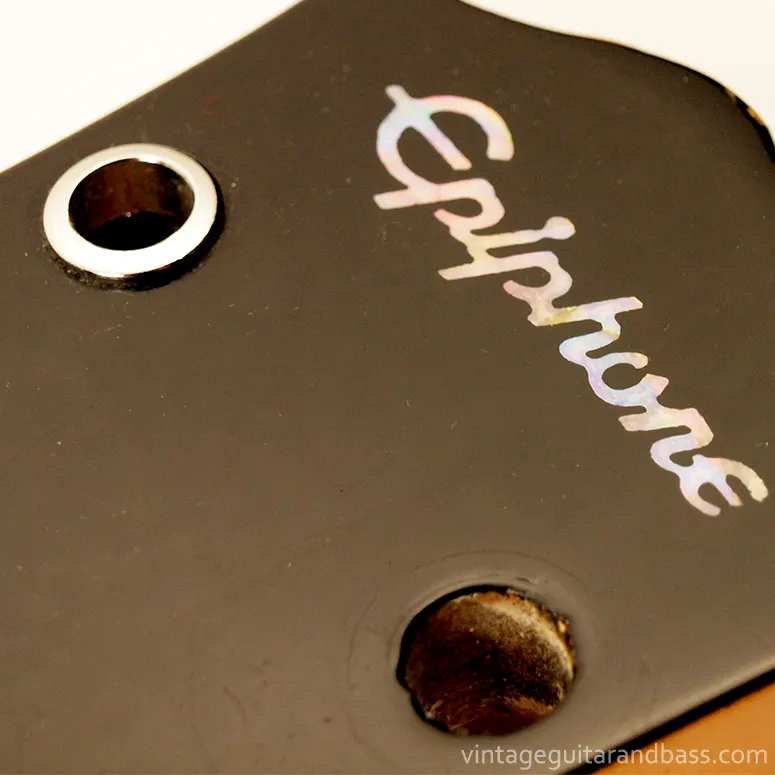

Matsumoku Epiphone bass headstock with tuners removed. The tuning key ferrule has an inside diameter of 10mm, outside diameter 12mm (14mm above the post hole), and a peghead hole a shade under 12mm (11.5mm-11.8, so a pretty tight fit!).

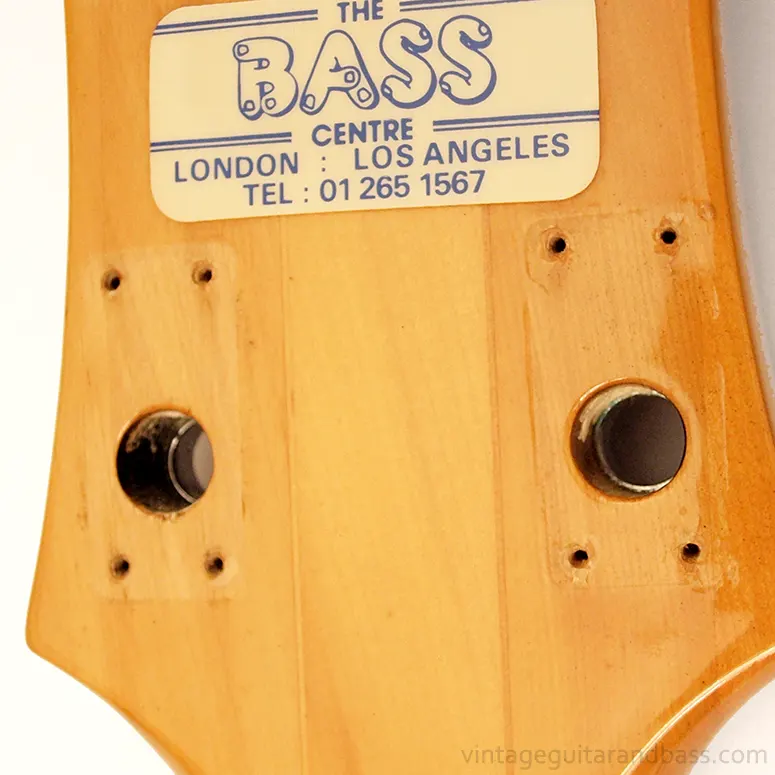

Matsumoku Epiphone bass headstock (reverse) with tuners removed, showing the tuning keys footprint and mounting screw holes.

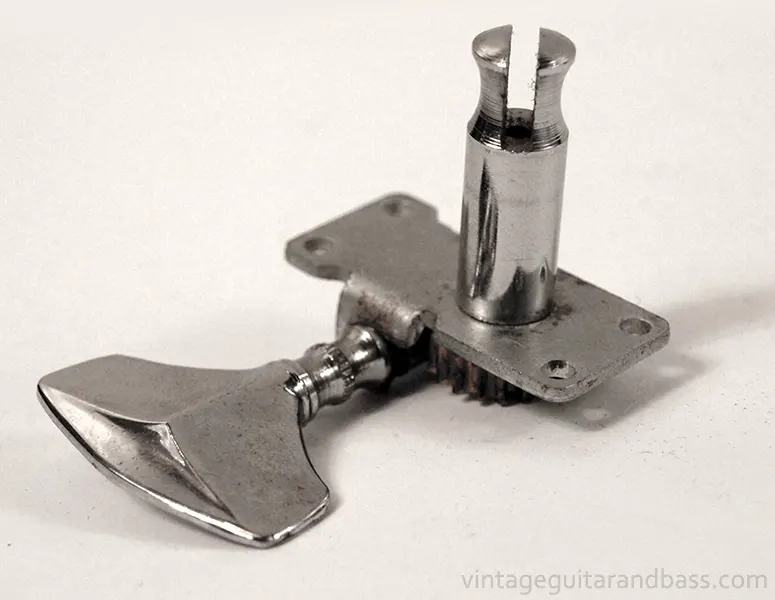

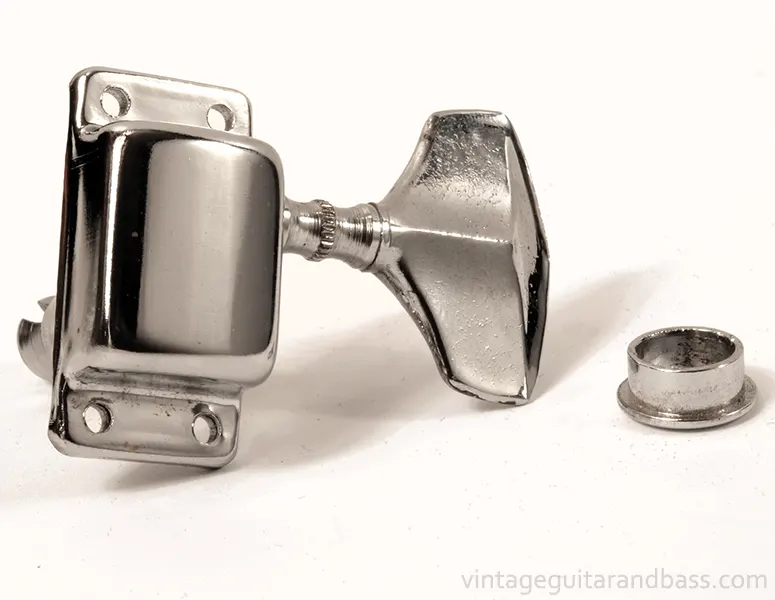

Matsumoku closed gear bass tuner removed from the instrument

Matsumoku Epiphone closed gear bass tuner removed from the instrument

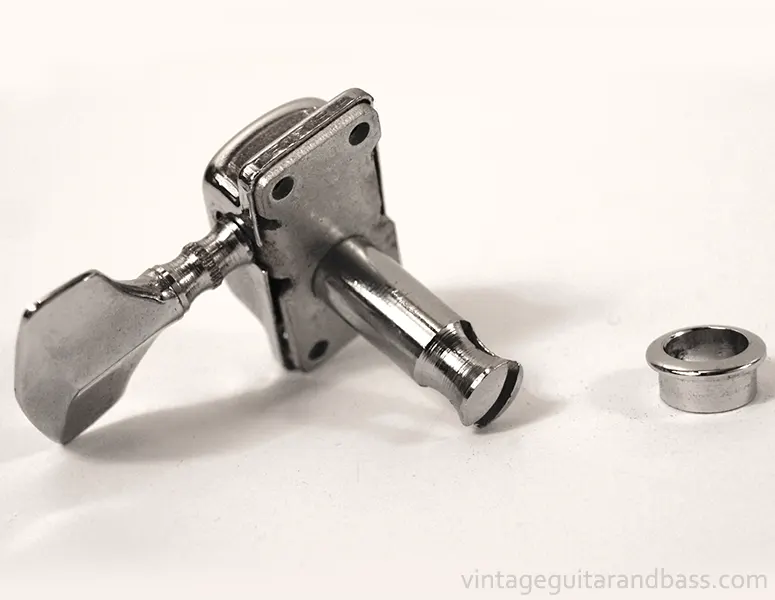

Underside view.

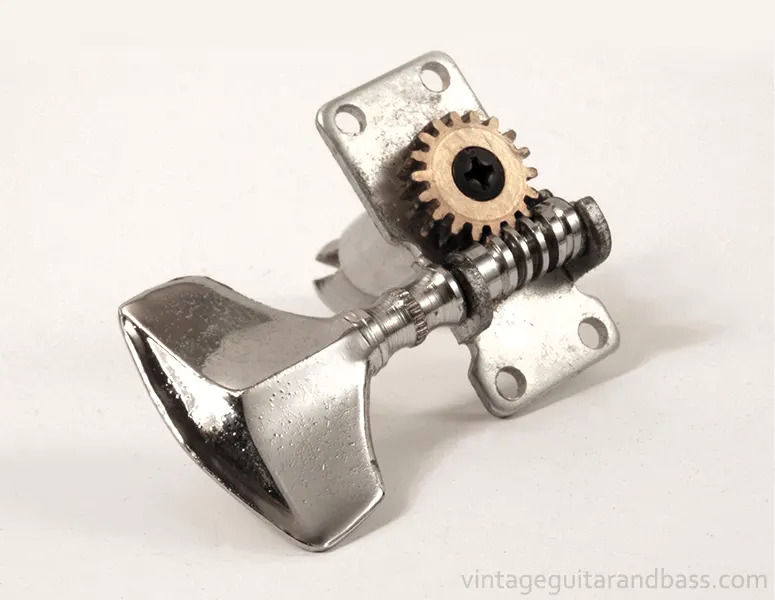

Matsumoku closed gear bass tuner with cover removed.

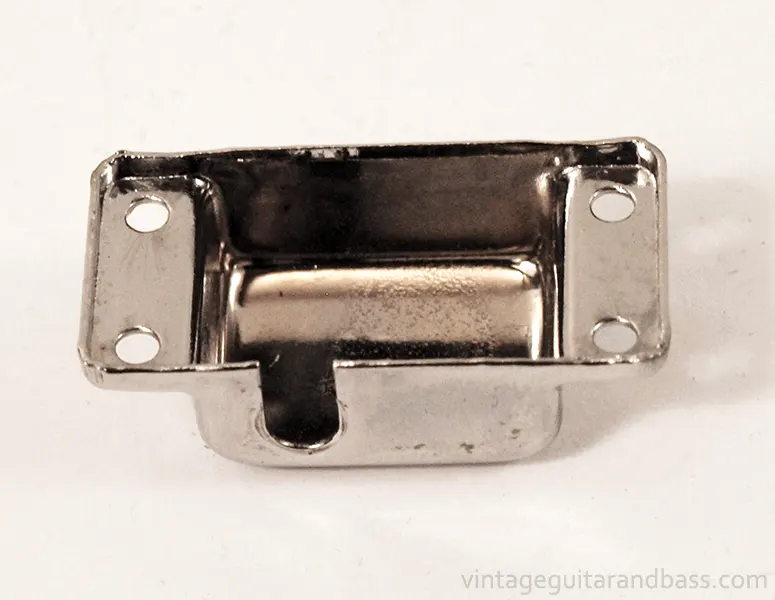

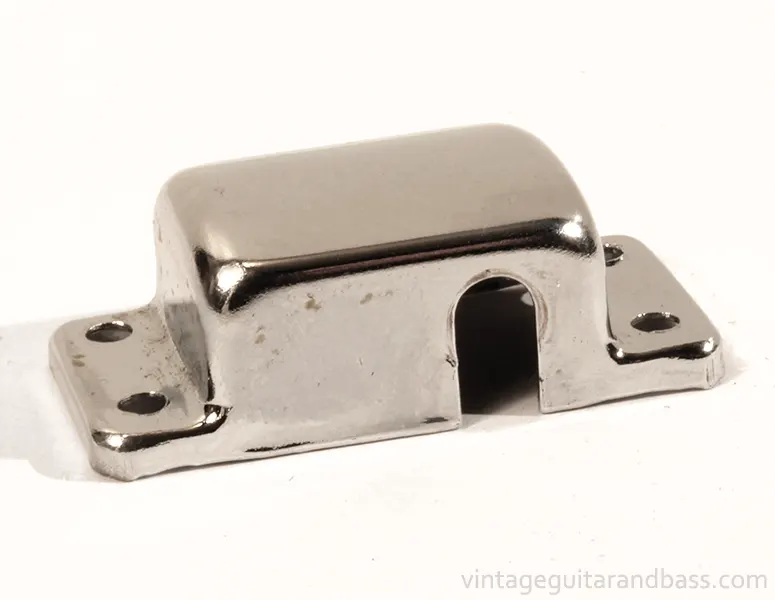

Matsumoku closed gear bass tuner cover.

Matsumoku closed gear bass tuner, disassembled, top view

The disassembled view of the tuning key, top view.

Matsumoku closed gear bass tuner, disassembled, underside view

The disassembled view of the tuning key, underside view.
