HAGSTROM | BASS | CONCORD / VIKING BASS

Hagstrom Concord Bass

Semi-acoustic short-scale electric bass

Hagstrom Concord main page | 1967 Hagstrom Concord | Concord sound clips

The Swedish-built Hagstrom Concord bass was initially known as the Hagstrom Viking bass; the companion bass model to the Hagstrom Viking guitar. The Concord was short/medium scale, lightweight, and as such very playable, despite lacking the feedback-reducing center body block of the Gibson EB2 / Epiphone Rivoli. There were two models: the Concord C-1, and a flashier version, the Concord C-2 Deluxe.

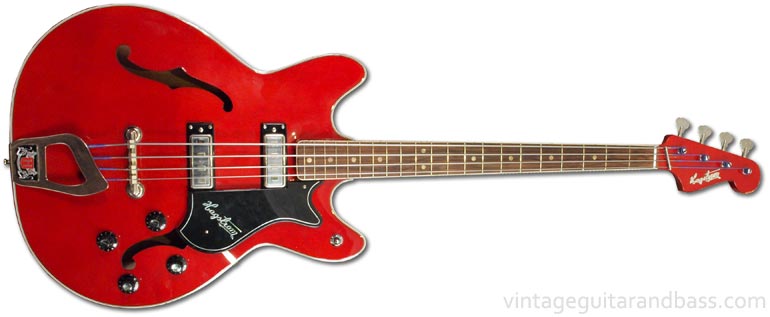

1967 Hagstrom Concord bass - cherry red finish
Have a closer look at this 1967 Hagstrom Concord bass

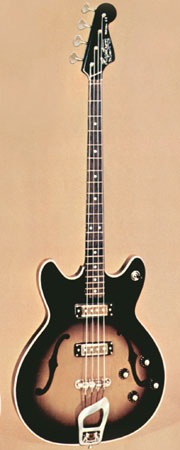

Hagstrom Concord C-1
From the 1966 Hagstrom catalog
Model Concord C-1
Available 1965-1971
Production 2749
Pickups Two single coil
Scale 31"
Body Hollow body with f-holes. Bound front and back. . Dimensions: 18 1/2" X 16 1/4" X 1 3/4"
Neck Rosewood fingerboard, dot inlays. Fender-style headstock
Hardware Two volume and tone controls, pickup selector switch, chrome plated hardware
Finishes Mahogany sunburst, Golden mahogany sunburst, cherry red

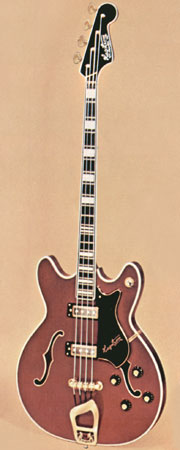

Hagstrom Concord C-2
From the 1966 Hagstrom catalog
Model Concord C-2
(Deluxe)
Available 1967-68
Production 150
Pickups Two single coil
Scale 31"
Body Hollow body with f-holes. Bound front and back. Dimensions: 18 1/2" X 16 1/4" X 1 3/4". Flamed maple and spruce
Neck Ebony fingerboard, block inlays. Bound neck and Fender-style headstock.
Hardware Two volume and tone controls, pickup selector switch, gold plated hardware
Finishes Mahogany sunburst, Golden mahogany sunburst, cherry red

Early models had a floating rosewood bridge, however this was replaced by a fixed bridge attached to the body with sound posts. Other subtle changes include the shape of the Hagstrom Crest tailpiece and scratchplate

Hagstrom Concord / Viking bass catalog apperances

Hagstrom 1966 catalog - with the world's fastest playing neck
1966 with the world's fastest playing neck catalog
Lightweight, graceful, slim body, in double cutaway design. 16" arched body
1966 Hagstrom guitar and bass catalog
1966 guitar and bass catalog
The "live" sound is reproduced acoustically in the body, then electrically projected by the super-sensitive Hagstrom pickups... banishing feedback from your performance
Hagstrom Concord from the 1964 Selmer catalogue
Hagstrom Concord (or Viking bass, as it was known in the UK) in the 1966 Selmer catalog
Hagstrom present a new instrument which will be around for a long time. A fine-looking bass in the Viking styling
1968 Hagstrom electrics catalog
1968 electrics catalog
"True" sound... with exceptionally wide tonal range created by special sound posts beneath the bridge.

The table below compares the Concord with some of its American-built competitors, at 1966 (US zone 1) prices: the Fender Coronado, Gibson EB2, Harmony H27, Guild Starfire, and Gretsch Country Gentleman. A few solid body instruments are included for comparison.

Hagstrom Concord vs. other semi-acoustic basses

ManufacturerModelPickupsScale1966 Price1967 Price1968 Price
HagstromC-1231"$260 $285
 C-2231"$435 $435
EpiphoneRivoli130"$360 $425
FenderPrecision134"$223 $239.50
 Coronado I130"$349.50 $389.50
 Coronado II230"  $449.50
GibsonEB2130"$325$395$425
 EB2D230"$395$435$470
 EB0130"$240$240$259
GuildStarfire I130"$350$350$370
GretschPX6070134"$375 $375
 PX6071130"$350 $350
HarmonyH22130"$109.50
 H27230"$249.50

As can be seen, the C-1 is competitively priced amongst other electric acoustic basses, however the C-2 is actually priced above all others. True it has gold plated hardware (along with the Gretsch PX6070), but perhaps this was the reason that two years later, whilst the C-1 had risen in price to $285, the C-2 remained at $435, costing less than the equivalent models from Gibson and Fender

Hagstrom Concord / Viking bass shipping data

The Hagstrom Concord bass was produced in four batches between 1965 and 1971. According to shipping data there were three batches of Concord C1, and one batch of the Concord Deluxe C2, although this is actually incomplete. A few examples have turned up with batch numbers other than those listed in the data, although it is not clear how big these batches were. There were some small changes over the course of production; early models (from batch 647) had a floating rosewood bridge, (later changing to a fixed bridge), a rectangular tailpiece (changing to the Hagstrom Crest design) and a plain (or no?) scratchplate.

 Batch NumberYearQuantity
Concord C16471965-67999
Concord C169619671000
Concord C17161967-71750
total C1  2749
Concord Deluxe C27181967-68150
total C2  150
